SEBO Access Door with Axle and Spring for X Series Uprights — Orange
SEBO Access Door with Axle and Spring for X Series Uprights — Orange
SKU:5172OR
Couldn't load pickup availability
Shipping Information
Shipping Information
We offer free standard shipping on eligible orders of $100 or more within the 48 contiguous United States. Eligibility is calculated on the merchandise subtotal after discounts and before tax.
Most in-stock orders using standard shipping are processed within 1-5 business days, and most arrive 2-11 business days after they are placed. Backordered and special-order items may take longer. Expedited UPS Ground is available at checkout for an extra charge, including on orders that qualify for free standard shipping. See our Shipping Policy for details.
Returns & Exchanges
Returns & Exchanges
Need to return an item? We’re happy to help. Eligible items may be returned by requesting authorization within 35 days of delivery. Once approved, your return must reach us within 21 days.
Return eligibility
Items must be unused, in new condition, and include their original packaging and all accessories. Machines that use water cannot be returned once unboxed, unless defective upon arrival.
Shipping and refunds
For non-defective returns, customers cover return shipping. Original shipping charges are nonrefundable. If your order included free shipping, our actual outbound shipping cost will be deducted from your refund. Eligible returns have no restocking fee.
Received a defective item?
Contact us so we can help arrange a prepaid return label and replacement.
Please review our Return & Refund Policy for complete details and exclusions.
Warranty Information
Warranty Information
All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.
With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.
Fits the same machines
SEBO Access Door with Axle ...
$6.99
Product details

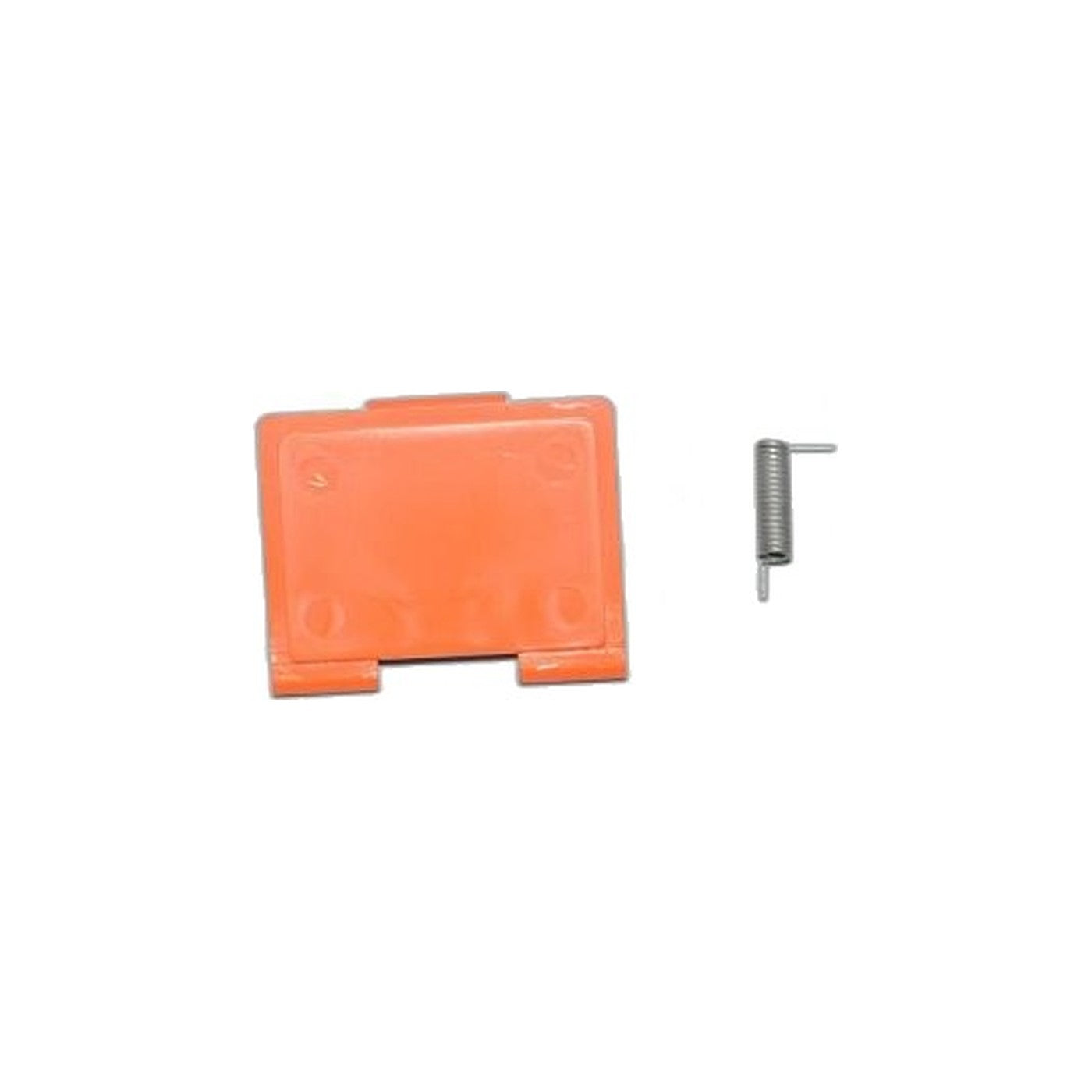

Sold built up rather than as a bare molding, 5172OR is the orange access door used across SEBO's AUTOMATIC X series uprights, and it arrives with its axle and return spring already on it. The X4/X5 exploded diagram lists the door at position 126 and notes that positions 127 and 128 come with it — those are axle 5303 and spring 5304 — so a single order covers the door and the pivot hardware that makes it swing and close.
The access door is opened whenever the brush roller area needs clearing, which on a busy machine means constantly. That duty cycle is why it is one of the more frequently broken parts on any upright: the hinge lugs take the load, the spring keeps trying to return it, and eventually a corner cracks or the axle bore wears oval. A door that will not latch flat leaves a gap in the underside of the head, and the head loses some of its seal against the carpet.
- Part number: 5172OR
- Colour: orange
- Supplied with: axle 5303 and spring 5304, diagram positions 127 and 128
- Diagram position: 126 on the AUTOMATIC X4/X5 parts breakdown
- Fits: AUTOMATIC X1, X2, X4, X4 Boost, X5, X7 Premium, X7 Pet and X8
Buying the assembled version saves sourcing a separate axle and return spring and then building the hinge up on the bench, and it means the pivot surfaces are all new to each other. Anyone searching for a SEBO access door, an X series brush roller door or an orange sole plate door replacement is in the right place with 5172OR. The axle and spring are also catalogued individually as 5303 and 5304 if only one of them has failed and the door itself is sound.
Genuine SEBO part from an authorized dealer; ships in 2-5 business days.
