• Trovac 122580-27 Central Vacuum Motor, 240V
1 1

Trovac

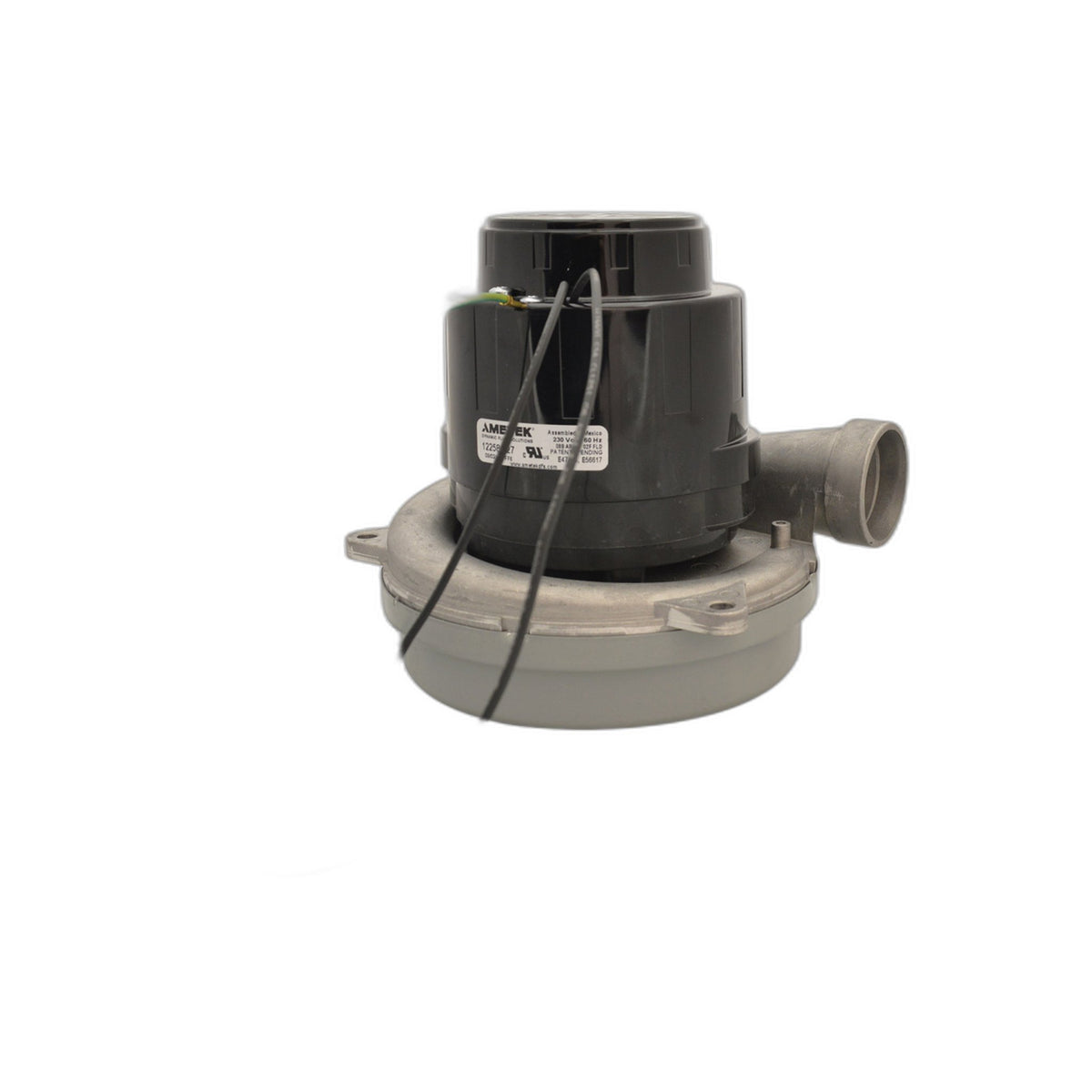

Trovac 122580-27 Central Vacuum Motor, 240V

Trovac 122580-27 Central Vacuum Motor, 240V

$176.99 USD
$176.99 USD
Sale Sold out
Shipping calculated at checkout.

TM258027
Authorized Trovac Dealer Factory warranty, extended free where we can
Free Shipping On Eligible Orders $100+
Secure Checkout SSL Encrypted

Shipping Information

We offer free standard shipping on eligible orders of $100 or more within the 48 contiguous United States. Eligibility is calculated on the merchandise subtotal after discounts and before tax.

Most in-stock orders using standard shipping are processed within 1-5 business days, and most arrive 2-11 business days after they are placed. Backordered and special-order items may take longer. Expedited UPS Ground is available at checkout for an extra charge, including on orders that qualify for free standard shipping. See our Shipping Policy for details.

Returns & Exchanges

Need to return an item? We’re happy to help. Eligible items may be returned by requesting authorization within 35 days of delivery. Once approved, your return must reach us within 21 days.

Return eligibility

Items must be unused, in new condition, and include their original packaging and all accessories. Machines that use water cannot be returned once unboxed, unless defective upon arrival.

Shipping and refunds

For non-defective returns, customers cover return shipping. Original shipping charges are nonrefundable. If your order included free shipping, our actual outbound shipping cost will be deducted from your refund. Eligible returns have no restocking fee.

Received a defective item?

Contact us so we can help arrange a prepaid return label and replacement.

Please review our Return & Refund Policy for complete details and exclusions.

Warranty Information

All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.

With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.

View full details

Trovac 122580-27 Central Va...

$176.99

Product details

Part TM258027 is Trovac's 240V-wired version of the Ametek/Lamb 122580-27 central vacuum motor, sold as a bare motor for rebuilding a 240V power unit.

Ametek/Lamb's own spec sheet for the 122580-27 rates the motor at 230 V, which is within normal tolerance for equipment wired to a 240V household circuit, and lists it as a two-stage, tangential bypass motor built on the 6.6 Premier Platform in the High Performance flow class, drawing 1,500 W with a 6.6 in frame. The build note for this exact part number describes it as the version without a thermal protection device, with added power lead terminals and a curved carbon brush compared to the base -00 casting. Being a bare motor, it ships without the exhaust tube, mounting gasket, or wiring harness that came off the original, so plan on transferring or replacing those parts as part of the same job rather than expecting the new motor alone to restore full suction.

  • Motor: Ametek/Lamb 122580-27, tangential bypass, 2-stage
  • Rating: 230 V (Ametek spec), 1,500 W, 6.6 in frame
  • Wiring: supplied for 240V systems
  • Brush kit: 8505969-50 (replacement)

Verify the 122580-27 part number and mounting against your existing motor before ordering TM258027, since this is the bare motor without an exhaust tube fitted.

Verified against: Ametek/Lamb model data for 122580-27
