Titan Lid Latch Assembly - ...
$29.99
Product details

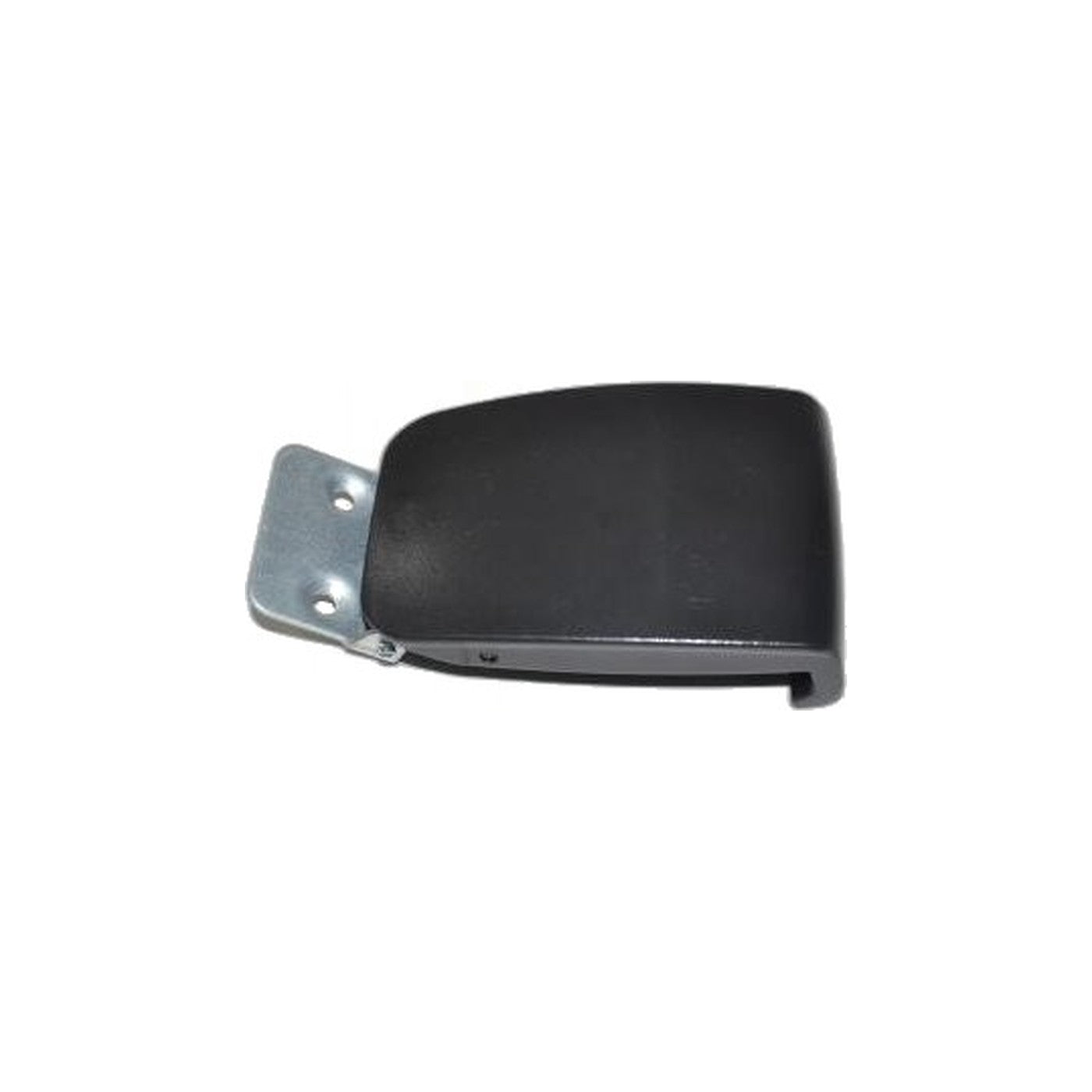

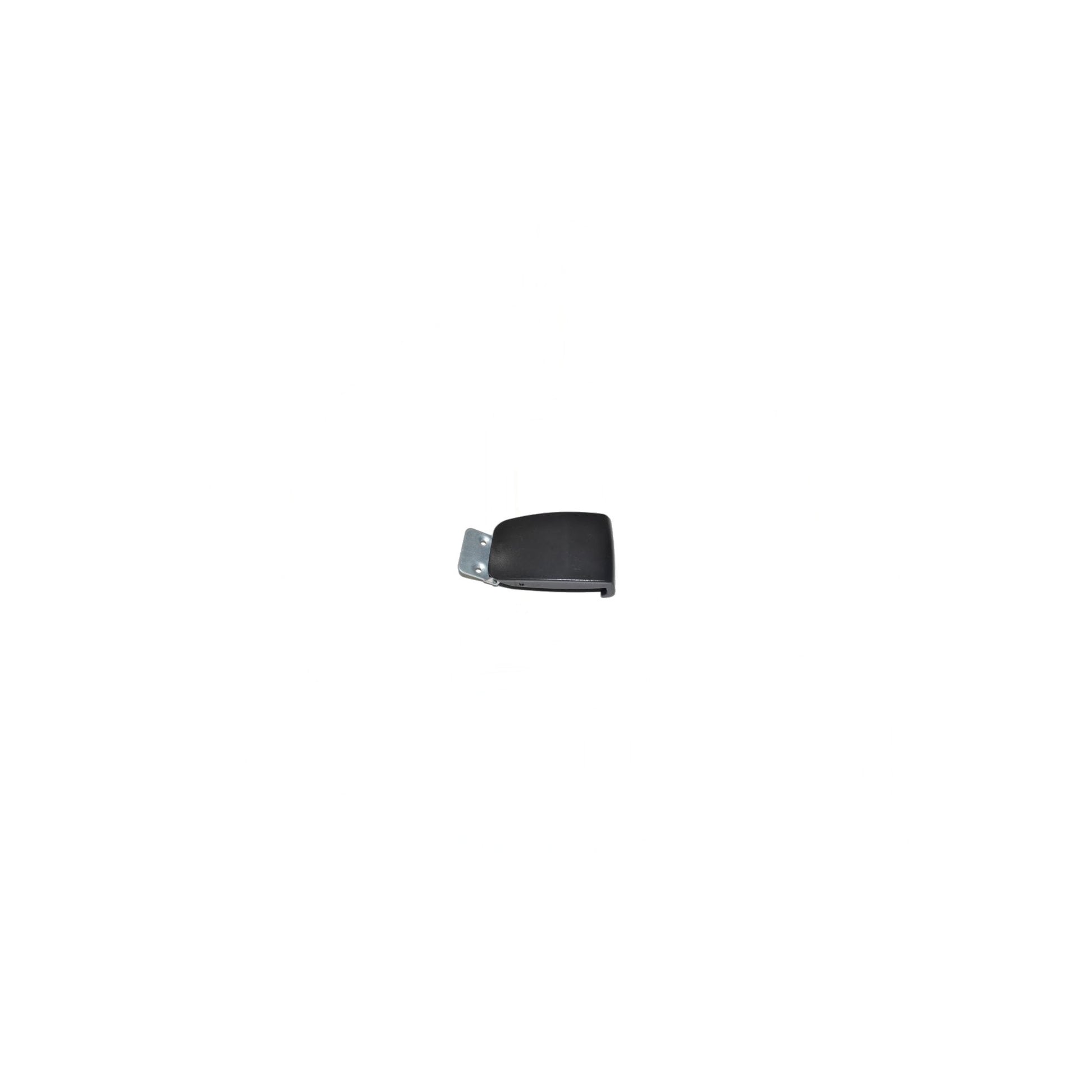

Part 17-7502-09 is the lid latch assembly for the Titan T750 backpack vacuum, the catch that pulls the lid down and holds it flush against the housing seal so the machine's internal air path stays closed while it runs.
A latch gives out gradually rather than all at once. The catch wears until it stops pulling the lid down square, or it loses its snap and no longer closes with any real grip. Both faults leave the lid sitting proud at one corner instead of seated flat, and since the lid forms part of the sealed envelope on a backpack unit, that small gap bleeds suction the same way a split hose would. Operators tend to notice the lid rattling against their back before they notice the machine cleaning worse, and by the time either shows up the two problems are already the same one.
Backpack machines get run for full shifts on commercial routes, so the latch cycles open and closed dozens of times a day, far more than any household vacuum sees over a year. That pace of use wears the catch long before the rest of the housing shows its age, which is why the latch tends to need attention while the machine around it is still sound.
The replacement fits in place of the worn assembly: remove the old catch, set the new one in its position, and close the lid to confirm it seats flush with even pressure across the whole edge before finishing the reassembly.
- Part: 17-7502-09, lid latch assembly
- Fits: Titan T750 backpack vacuum
- Function: pulls the lid down and holds it flush against the housing seal
- Symptom: a lid that rattles loose or sits proud at one corner
- Check: confirm the closed lid seats flush with even pressure before returning the machine to service
