Riccar Spring Assist Axle S...
$6.99
Product details

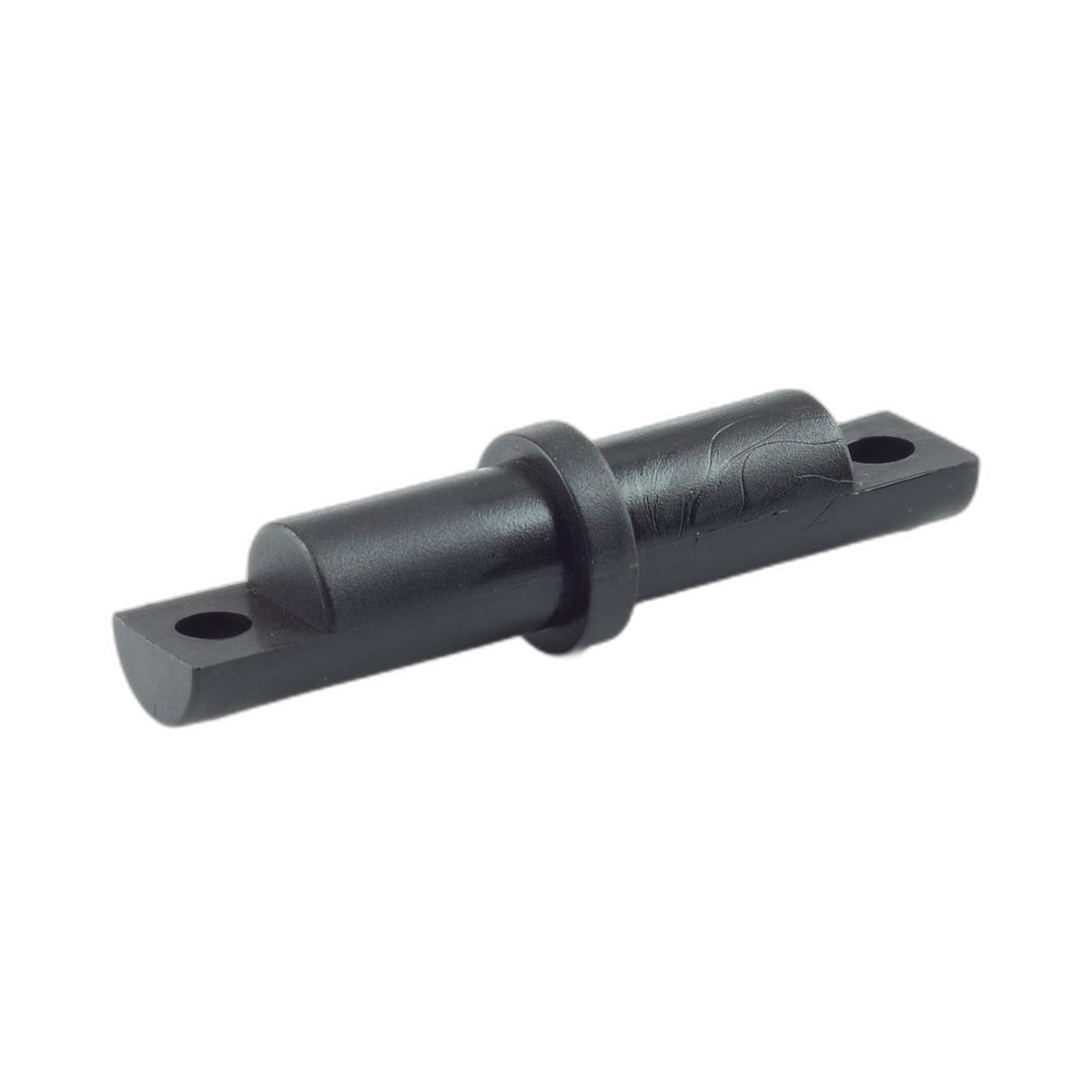

Part B470-2600 is the black spring-assist axle shaft used on Simplicity Synchrony and Riccar Brilliance uprights, two ranges Tacony builds on the same platform. It is the shaft itself, with the spring-assist linkage anchored to it, not a bare axle pin.
The spring assist is what keeps the handle light when the body is tipped back for cleaning under furniture. When the shaft wears or bends, the tilt starts to bind partway through its arc, or the body no longer holds level once reclined.
- Part: B470-2600
- Finish: black
- Fits: Simplicity Synchrony and Riccar Brilliance uprights
- Function: spring-assist axle shaft
Check the black finish and overall length against the shaft you are removing before ordering, since the same part number does the same job across both branded ranges but a bent or worn original can be hard to measure accurately by eye. If the tilt still binds after the shaft is replaced, the spring itself is a separate wear point worth checking. Ships in 2-5 business days.
