SEBO Cable Rewind Pedal for...
$8.00
Product details

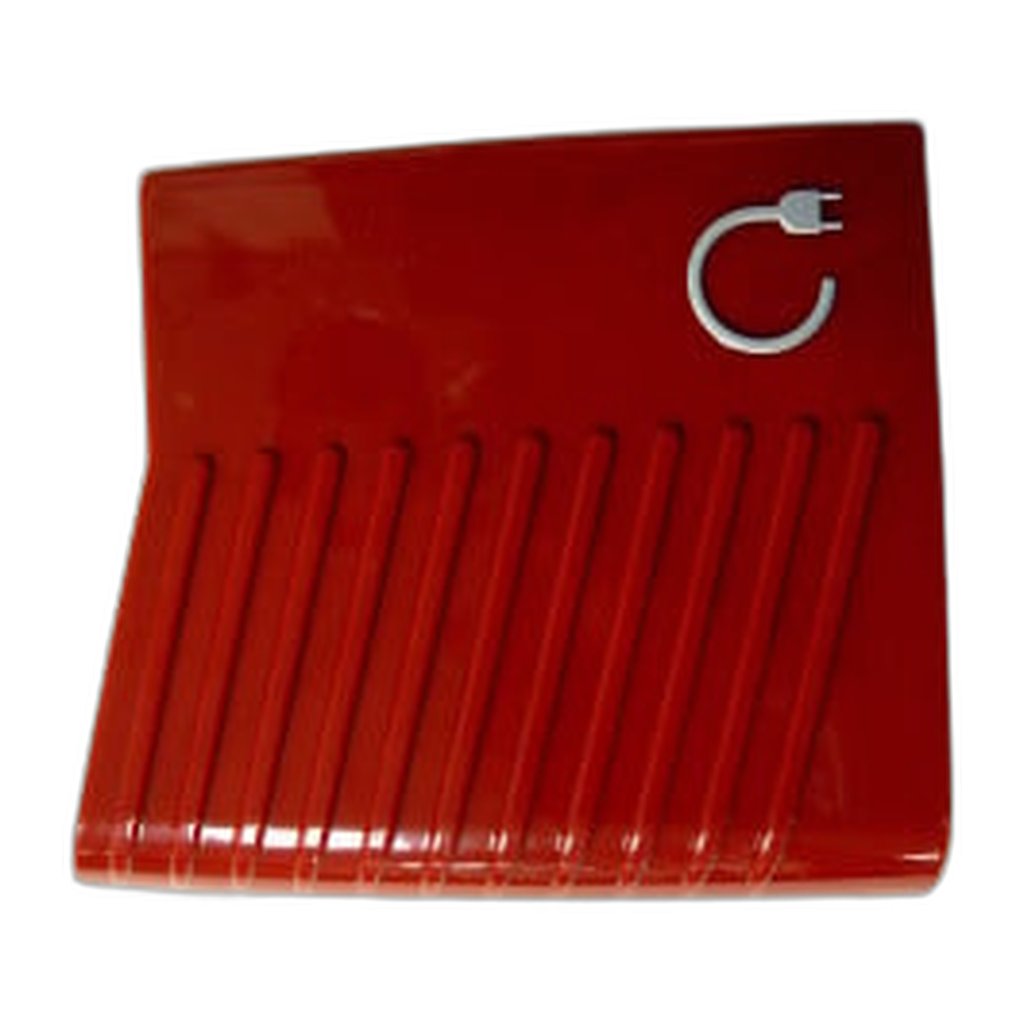

Two pedals sit side by side on the body of a C-series canister. The one that lets the reel draw the power cable back in is the cord rewind, and part 6006DR is the red moulding for it.
Pressing the pedal releases the catch on the reel, and the reel takes care of the rest. It receives a full boot, usually at an angle and often in a hurry, so the plastic tends to split across its pivot long before anything electrical gives trouble. From that point the pedal loses travel, the catch is never pushed far enough to let go, and the cable has to be fed back into the machine by hand. Where the pedal still moves through its whole stroke and nothing happens, look instead at the return spring behind it, which is a separate item with its own failure mode.
- Part number: 6006DR
- Colour: red
- Fits: SEBO C1.1, SEBO C2.1 and SEBO C3.1 canister vacuums
- Function: foot release for the cord reel
- Return spring behind it: 6023
- Same pedal in other finishes: white 6006GW, teal 6006TK
- Power pedal alongside it: 6005DR in red
- Matching red casings: 6127DR and 6397DR
Order by number if the machine is red — rewind pedal, power pedal and casing all carry their own numbers and share only the shade. Common searches are SEBO cord rewind pedal, C2.1 cable rewind pedal replacement, and red SEBO retract pedal. Unplug the canister first. With the pedal out it is worth clearing the lint that works its way into the pivot over the years and checking that the spring is still hooked where it should be, since refitting a new pedal over a tired spring buys back only half the problem. Genuine SEBO moulding, dispatched in 2–5 business days.
