SEBO Attachment Cover for C...
$20.00
Product details

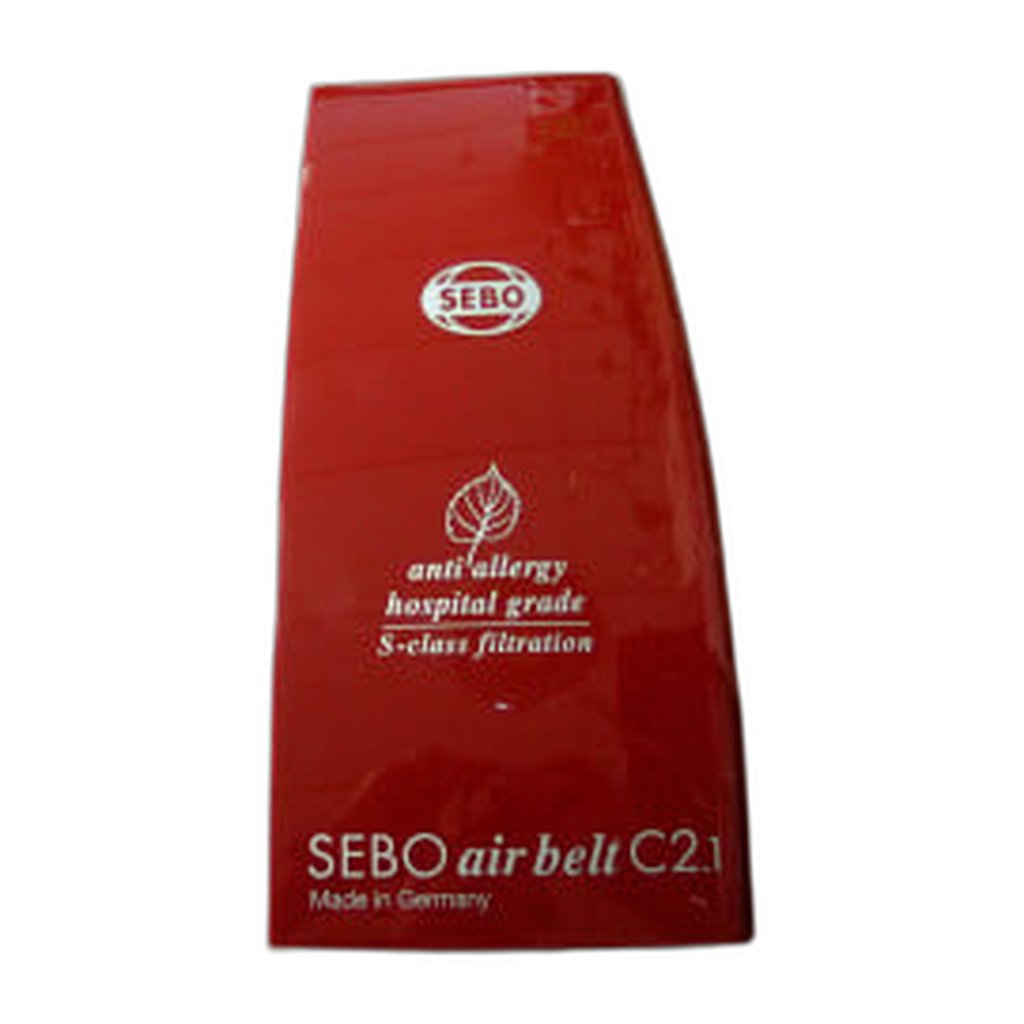

On a red SEBO C2.1 the tool compartment is closed by 6383AM. The panel hinges open for the crevice tool and the dusting brush and snaps back level with the surrounding bodywork when it is shut.
Most of these are ordered because a hinge lug has broken, a few because the original faded next to the rest of the trim, and a surprising number because the panel disappeared during a house move. Whatever removed it, an open bay means the tools work themselves loose as the canister is towed along, and grit settles on them between jobs. The replacement locates on exactly the same pivot points as the factory panel and is a fit-by-hand job.
Two parts inside the assembly are ordered separately and are worth diagnosing before the order goes in. Spring 6045 is what SEBO lists behind this cover; attachment clips come in threes as 6117ER. A panel that latches correctly while the tools still rattle is a clip fault. A panel that will not stay shut although the catch is undamaged points at the spring instead.
- Number — 6383AM
- Colour — red
- Machines — the SEBO C1.1 and C2.1 family; this is the C2.1 panel
- Role — closes the onboard attachment storage
- Included — the moulding only
- Teal green alternative — 6380AM
- Add if required — 6045, 6117ER
Red on this machine is a family rather than a single panel, so a canister being tidied up may also want top casing 6127DR, cable rewind pedal 6006DR, and on/off pedal 6309DR, which includes spring 6143. Behind them sits microfilter holder 6003DG in dark gray. Buying a colour piecemeal across several years is how mismatched machines come about, so noting the numbers down once pays off. Genuine SEBO replacement from an authorized dealer, shipping in 2–5 business days.
