Panasonic Headlight Lens - ...
$21.99
Product details

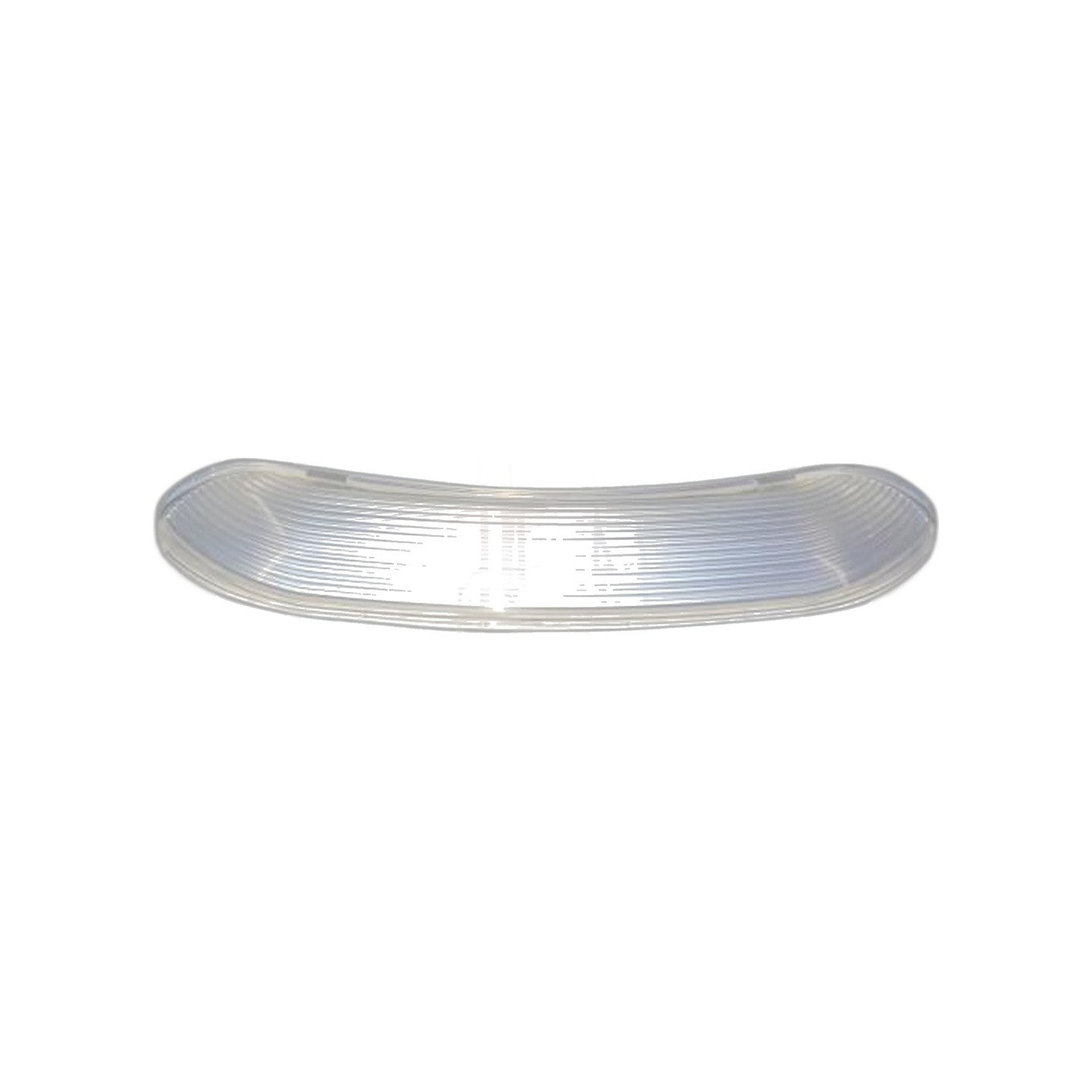

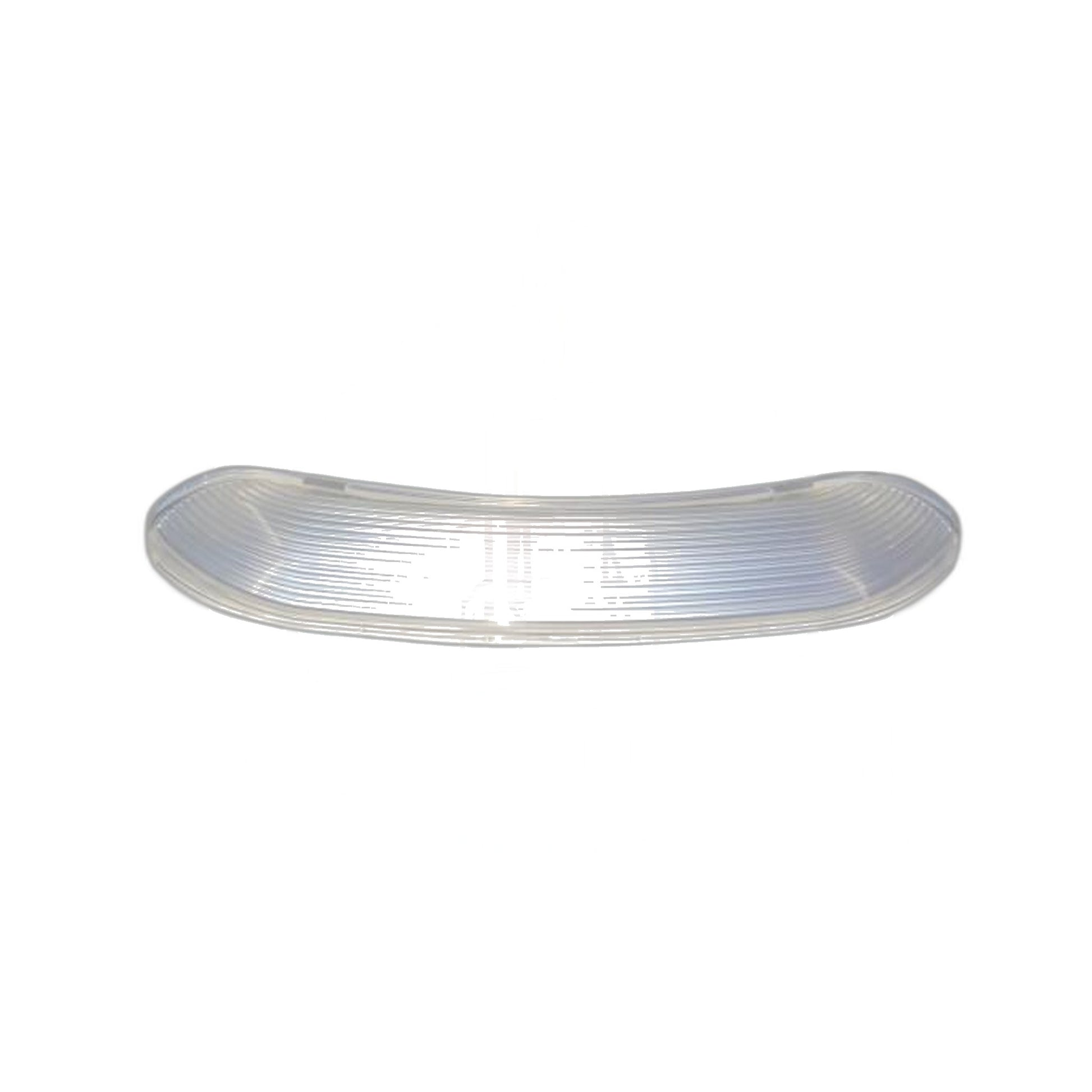

A clear lens sits over the headlight bulb on the front of Panasonic's MC-V5375 upright, and this replacement, part AC21HURZ00, is cataloged for the MC-UG581 as well. The lens has one job: shield the bulb from bumps and debris while letting the light through clean so it lands on the carpet where the nozzle is about to pass, useful under furniture and along baseboards where a room's overhead light rarely reaches.
Once cracked, the bulb behind it takes the next hit directly, since nothing is left standing between it and whatever knocks the machine takes during normal use. A lens that has only clouded over from years of scuffing will still noticeably dim the beam, even without a crack. A weak or dark headlight is one of those small details that ages a vacuum well past what its motor actually shows, and it is an easy thing to fix compared to most repairs on this machine.
Molded to the original shape, this piece drops back into its recess without filing or forcing. Getting the old one out usually means releasing a small clip or a pair of edge tabs, a task best handled with the machine unplugged and the bulb left alone unless it needs replacing too. Handle the new lens by its edges rather than the clear face, since fingerprints on the inside surface will show up as a smeared beam once the light is back on.
Press the new lens fully into its recess and power the machine back on to check that light spreads evenly across the surface rather than pooling in one corner, a sign the piece has not seated flush. Recheck the clip or tabs once more before putting the vacuum back into regular use.
- Part: AC21HURZ00, headlight lens
- Fits: Panasonic MC-V5375, MC-UG581
- Function: shields the bulb, directs the beam onto the carpet just ahead of it
- Symptom: cracked lens, cloudy or dimmed beam
