Oreck

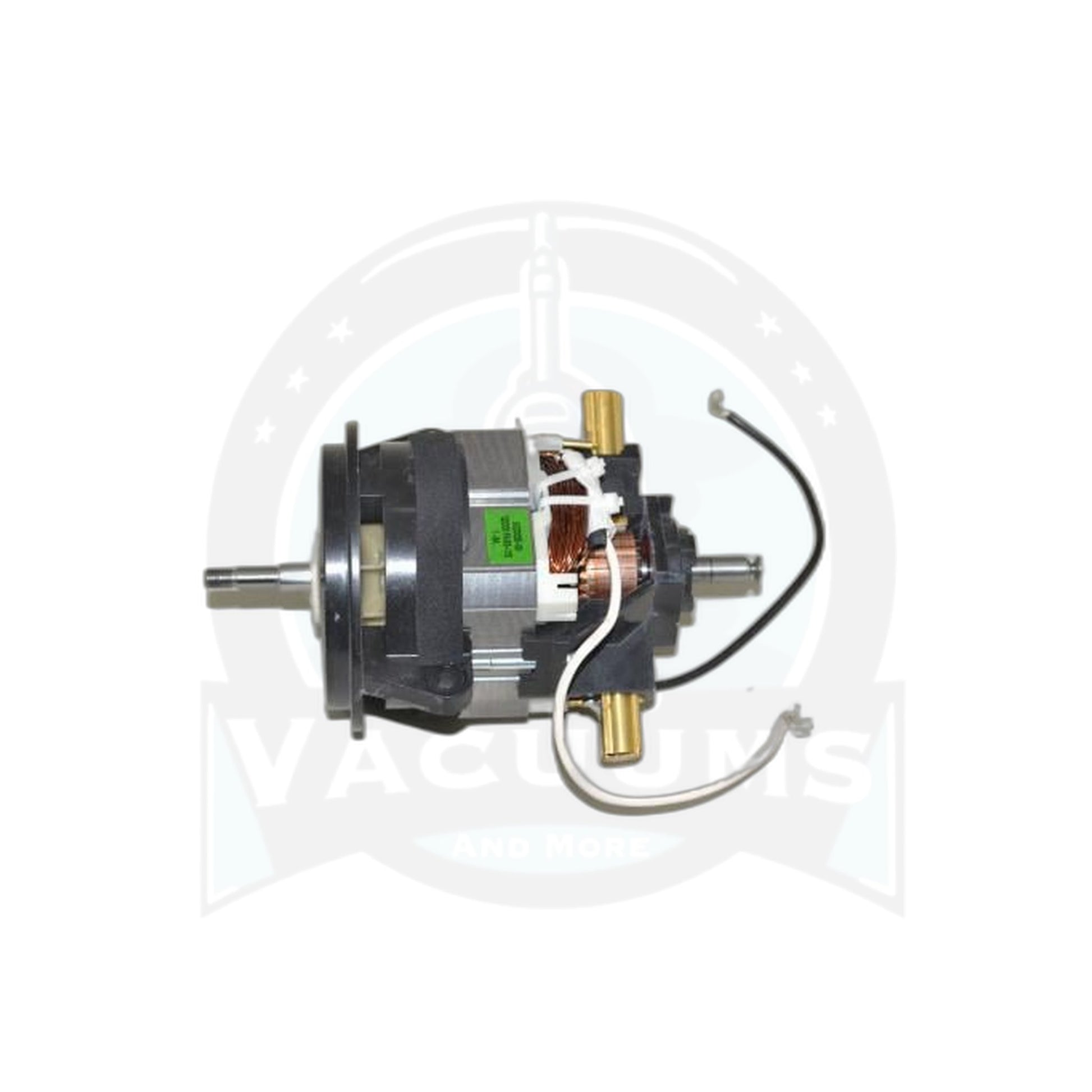

Oreck Motor Assembly - XL21 Series Upright (Fan Not Included)

Oreck Motor Assembly - XL21 Series Upright (Fan Not Included)

Regular price $88.99 USD
Regular price Sale price $88.99 USD
Sale Sold out
Shipping calculated at checkout.

SKU:09-77038-02

31 in stock

Authorized Oreck Dealer Factory warranty, extended free where we can
Free Shipping On Eligible Orders $100+
Secure Checkout SSL Encrypted

Shipping Information

We offer free standard shipping on eligible orders of $100 or more within the 48 contiguous United States. Eligibility is calculated on the merchandise subtotal after discounts and before tax.

Most in-stock orders using standard shipping are processed within 1-5 business days, and most arrive 2-11 business days after they are placed. Backordered and special-order items may take longer. Expedited UPS Ground is available at checkout for an extra charge, including on orders that qualify for free standard shipping. See our Shipping Policy for details.

Returns & Exchanges

Need to return an item? We’re happy to help. Eligible items may be returned by requesting authorization within 35 days of delivery. Once approved, your return must reach us within 21 days.

Return eligibility

Items must be unused, in new condition, and include their original packaging and all accessories. Machines that use water cannot be returned once unboxed, unless defective upon arrival.

Shipping and refunds

For non-defective returns, customers cover return shipping. Original shipping charges are nonrefundable. If your order included free shipping, our actual outbound shipping cost will be deducted from your refund. Eligible returns have no restocking fee.

Received a defective item?

Contact us so we can help arrange a prepaid return label and replacement.

Please review our Return & Refund Policy for complete details and exclusions.

Warranty Information

All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.

With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.

View full details

Oreck Motor Assembly - XL21...

$88.99

Product details

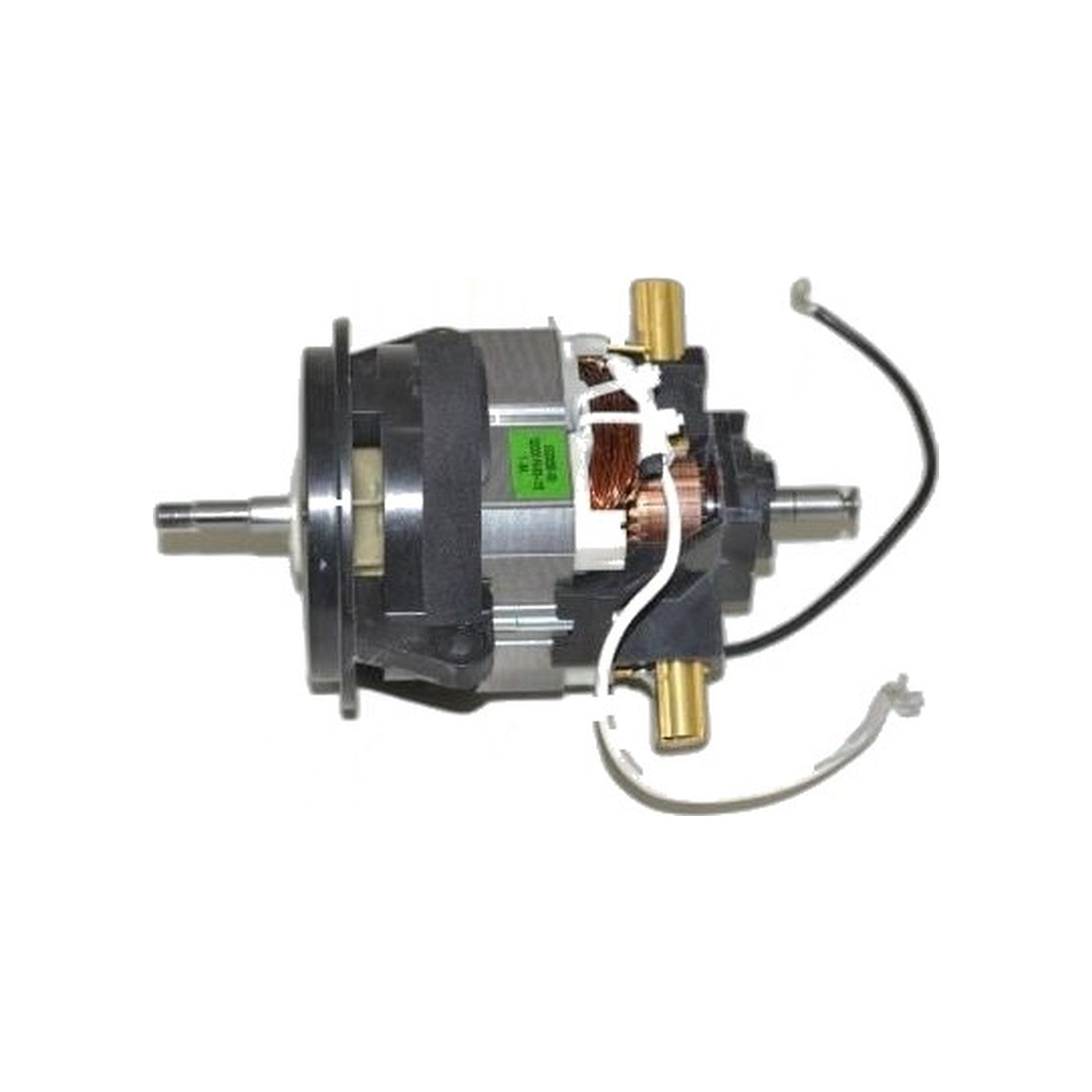

Part 09-77038-02 is the replacement motor for Oreck XL21 series uprights, also known by its Johnson designation U-8220. The fan shaft measures 1-1/4 inches. Note that the fan is not supplied with it and must be ordered separately, and this motor should not be used with the 927 patch pin.

Motors give plenty of warning. Suction falls away over months rather than overnight, the machine runs hotter and louder than it used to, and eventually it starts cutting out mid-clean as the thermal protection trips. A burning smell means stop.

It fits the XL21 range, XL21-600, XL21-700 and XL21-750, along with the U7000ECB, U7000ECP, U7000ECR, U7030ECBS, U7050ECB, U7100ECB, U7200 and U7300 machines and the U7211 variants. Unplug the vacuum and let it cool completely before starting.
