• Metal 90-Degree Elbow Pipe Fitting, 1 Spigot End
1 1

Trovac

Trovac Metal 90-Degree Elbow Pipe Fitting, Spigot End

Trovac Metal 90-Degree Elbow Pipe Fitting, Spigot End

$33.00 USD
$33.00 USD
Sale Sold out
Shipping calculated at checkout.

TFM1193V
Authorized Trovac Dealer Factory warranty, extended free where we can
Free Shipping On Eligible Orders $100+
Secure Checkout SSL Encrypted

Shipping Information

We offer free standard shipping on eligible orders of $100 or more within the 48 contiguous United States. Eligibility is calculated on the merchandise subtotal after discounts and before tax.

Most in-stock orders using standard shipping are processed within 1-5 business days, and most arrive 2-11 business days after they are placed. Backordered and special-order items may take longer. Expedited UPS Ground is available at checkout for an extra charge, including on orders that qualify for free standard shipping. See our Shipping Policy for details.

Returns & Exchanges

Need to return an item? We’re happy to help. Eligible items may be returned by requesting authorization within 35 days of delivery. Once approved, your return must reach us within 21 days.

Return eligibility

Items must be unused, in new condition, and include their original packaging and all accessories. Machines that use water cannot be returned once unboxed, unless defective upon arrival.

Shipping and refunds

For non-defective returns, customers cover return shipping. Original shipping charges are nonrefundable. If your order included free shipping, our actual outbound shipping cost will be deducted from your refund. Eligible returns have no restocking fee.

Received a defective item?

Contact us so we can help arrange a prepaid return label and replacement.

Please review our Return & Refund Policy for complete details and exclusions.

Warranty Information

All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.

With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.

View full details

Trovac Metal 90-Degree Elbo...

$33.00

Product details

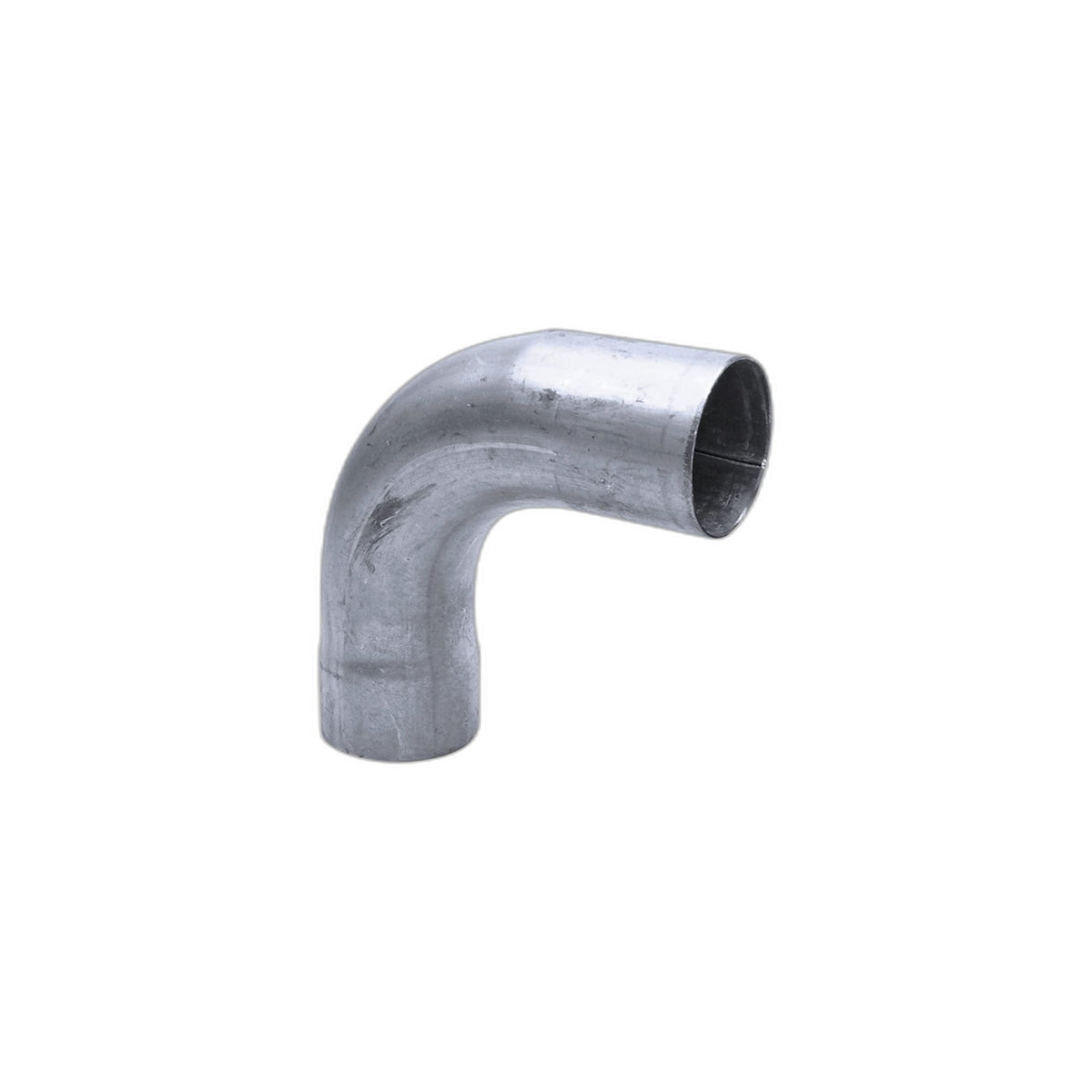

Part TFM1193V bends a run of metal central vacuum tubing through a right angle, with one end machined as a spigot sized to seat directly inside the socket of the next pipe segment, so the joint closes up without a separate coupling standing between the two pieces.

Metal tubing tends to route through wall cavities and around wood framing where every extra inch a fitting adds can be the difference between a run that clears a stud bay and one that does not, and a spigot-ended elbow keeps a corner turn shorter than a two-socket design would allow. Joining metal fittings calls for a contact cement built for metal pipe, since the cements made for PVC central vacuum tubing are not formulated to hold on a metal-to-metal joint, and a joint bonded with the wrong cement can work loose well before the pipe itself ever wears out.

  • Part: TFM1193V
  • Angle: 90 degrees
  • End style: one spigot end
  • Material: metal

Confirm the pipe diameter on your existing metal run before ordering, and use a contact cement rated for metal central vacuum pipe, not a PVC formula, when setting TFM1193V in place. A corner like this one carries more stress than a straight run, so support the pipe near the joint with a strap or hanger rather than leaving the elbow to carry its own weight. Verified against: Trovac catalogue listing for the 90-degree metal elbow with one spigot end
