Trovac

Trovac 18/2 Low-Voltage Wire Spool, 500 ft

Trovac 18/2 Low-Voltage Wire Spool, 500 ft

$123.99 USD
$123.99 USD
Sale Sold out
Shipping calculated at checkout.

TFFIL500US
Authorized Trovac Dealer Factory warranty, extended free where we can
Free Shipping On Eligible Orders $100+
Secure Checkout SSL Encrypted

Shipping Information

We offer free standard shipping on eligible orders of $100 or more within the 48 contiguous United States. Eligibility is calculated on the merchandise subtotal after discounts and before tax.

Most in-stock orders using standard shipping are processed within 1-5 business days, and most arrive 2-11 business days after they are placed. Backordered and special-order items may take longer. Expedited UPS Ground is available at checkout for an extra charge, including on orders that qualify for free standard shipping. See our Shipping Policy for details.

Returns & Exchanges

Need to return an item? We’re happy to help. Eligible items may be returned by requesting authorization within 35 days of delivery. Once approved, your return must reach us within 21 days.

Return eligibility

Items must be unused, in new condition, and include their original packaging and all accessories. Machines that use water cannot be returned once unboxed, unless defective upon arrival.

Shipping and refunds

For non-defective returns, customers cover return shipping. Original shipping charges are nonrefundable. If your order included free shipping, our actual outbound shipping cost will be deducted from your refund. Eligible returns have no restocking fee.

Received a defective item?

Contact us so we can help arrange a prepaid return label and replacement.

Please review our Return & Refund Policy for complete details and exclusions.

Warranty Information

All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.

With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.

View full details

Trovac 18/2 Low-Voltage Wir...

$123.99

Product details

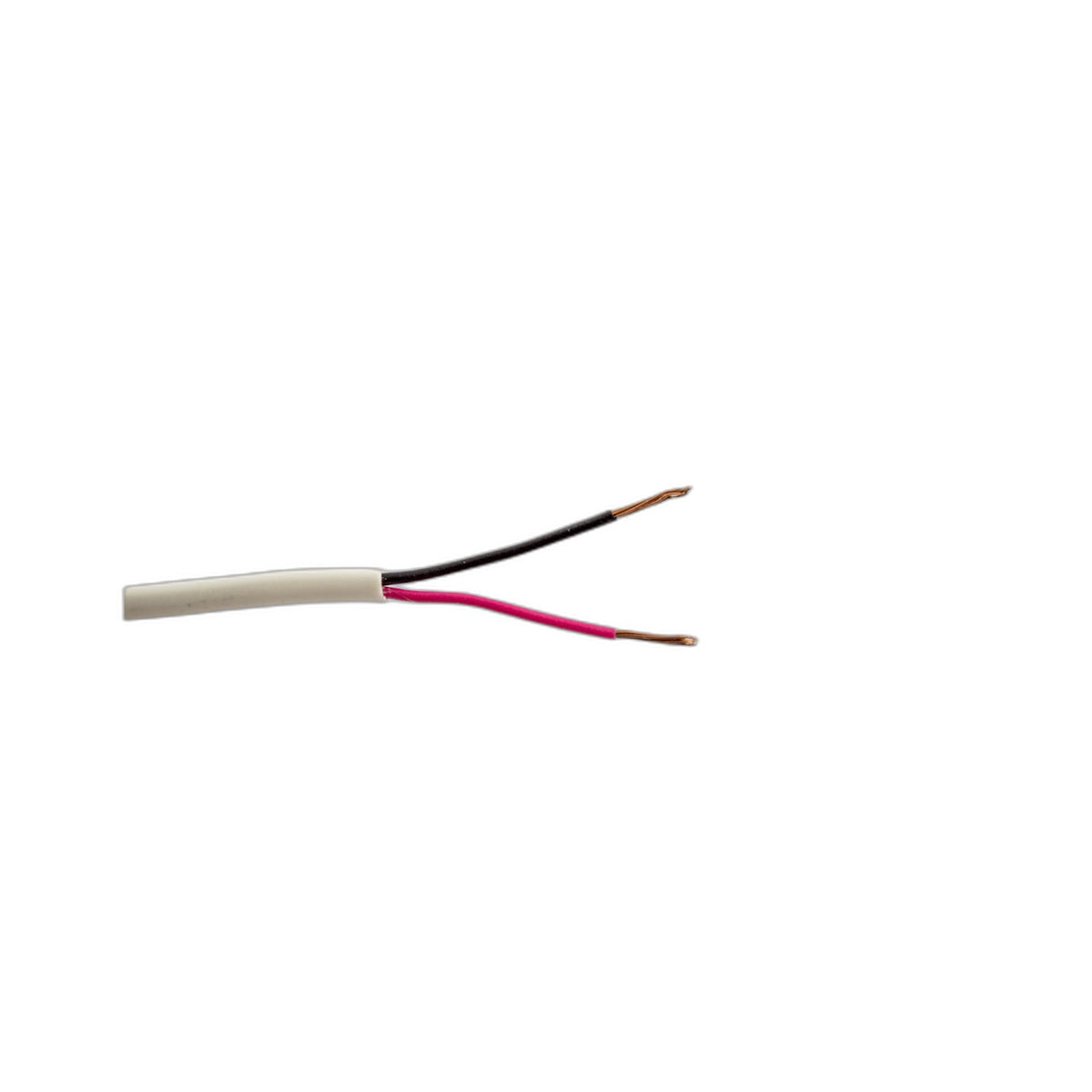

A single TFFIL500US spool holds 500 ft of 18/2 two-conductor wire for central vacuum low-voltage inlet wiring. The cable runs beside the PVC tubing between each wall inlet and the power unit, carrying the low-voltage signal that switches the unit on when a hose is plugged in.

Because central vacuum low-voltage wiring is simple two-conductor cabling, a single 500 ft spool typically covers the full low-voltage run in a multi-inlet home, though an unusually large layout may need a second spool. Counting the inlets and pacing out the route to each one beats a rule of thumb here, since a long single-storey layout can burn through wire far faster than a compact two-storey plan with the same inlet count.

  • Part: TFFIL500US
  • Length: 500 ft on one spool
  • Conductors: 2, 18 gauge
  • Use: low-voltage start and stop signal wiring for central vacuum inlets

Run the wire in the same wall cavity or alongside the vacuum pipe, then land each end at the inlet plate and the power unit's low-voltage screw terminals. Order a second spool ahead of time for an unusually large inlet count, since splicing low-voltage wire mid-run is best avoided.
