Hoover Fusion Bagless Uprig...
$6.99
Product details

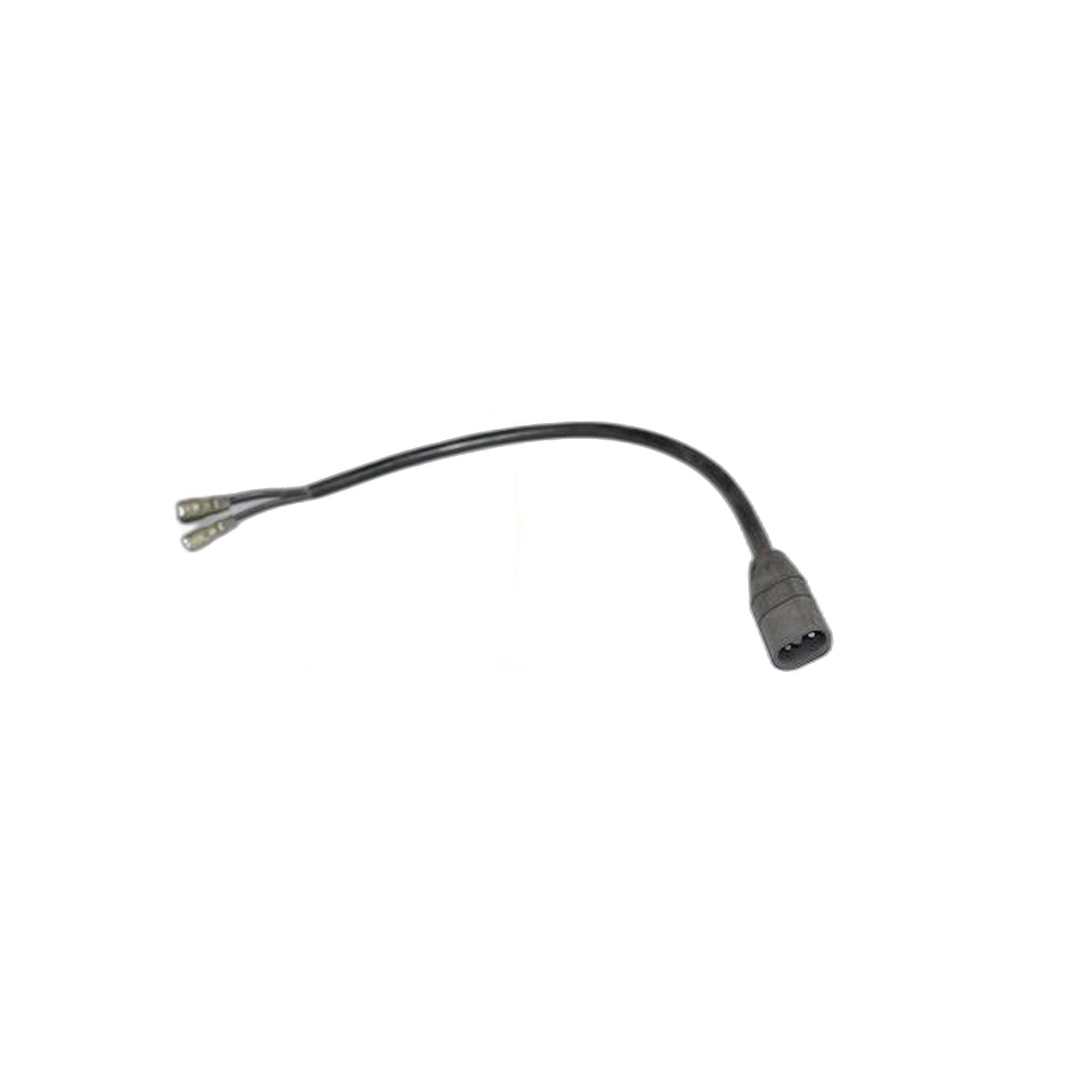

Part 93001700 is the male half of an internal electrical connector pair used across the Hoover Fusion and related bagless uprights, the pin side that plugs into the matching socket, sending current onward into the motor circuit and the brush-roll drive.
Repeated vibration from normal use gradually works a plug connector loose in its housing, and the pins themselves can develop a light coat of oxidation where they meet the socket. Either one shows up the same way at the vacuum: suction that drops out for no clear reason, or an electrical fault that seems to disappear the moment you go looking for it, because the connection is only failing under certain movement or angles. Pin-and-socket connectors like this one are rated for a limited number of insertion cycles before the contact surface starts to degrade, so a connector that has been unplugged repeatedly across years of service work wears sooner than wiring that has never been disturbed since assembly.
A fresh male connector restores clean, tight contact at the pins, which is usually enough on its own to end a fault that has been hard to pin down through normal troubleshooting.
- Part: 93001700, male electrical connector
- Function: plugs into the mating female connector, sending current onward into the motor circuit and brush-roll drive
- Fits: Hoover U5180900, U5180910, U5182900, U5183900, U5185900, U5194900, U5198900, U5199900, U5780900, U5781900, UH70005B, UH70035B, UH70040, UH70060, UH70070, UH70085, UH70086
- Symptom it fixes: suction or power that drops intermittently and returns without warning
Inspect the mating female connector at the same time, since a worn socket and a worn plug usually wear together.
