Product details

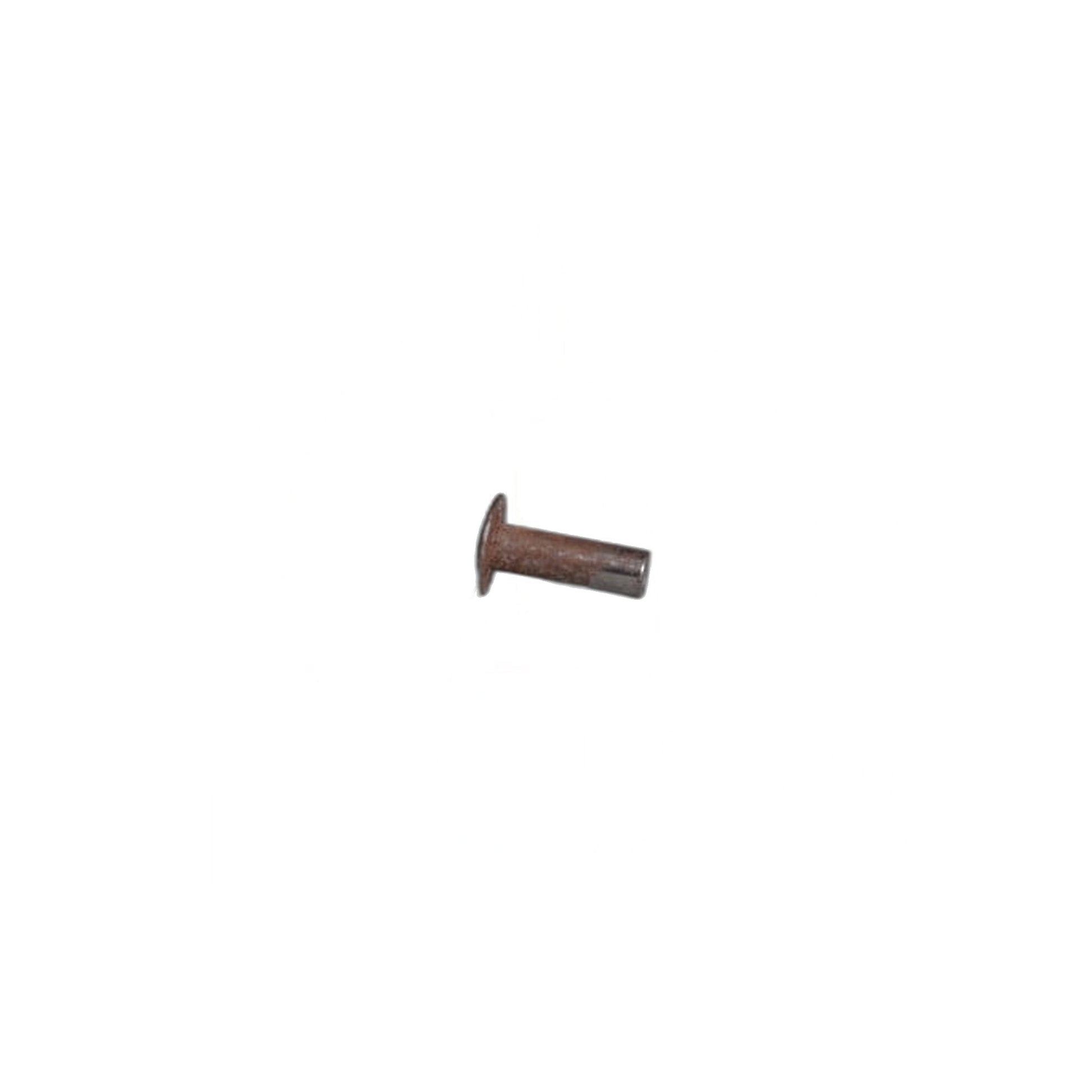

Part 048422 is a structural rivet used inside several Hoover commercial upright vacuums, holding body panels and internal brackets together at points that carry real mechanical load. It is a small part with an outsized job, since everything mounted around it depends on that joint staying tight.
When a rivet like this shears, the pieces it held start to move against each other. The first sign is usually a rattle that was not there before, sometimes only on certain floor surfaces or when the machine is tipped back. Left alone, the movement widens the original hole, and what started as a loose panel can progress into a misaligned brush roll or nozzle, because the shifting has spread to parts that are supposed to stay fixed relative to each other. Rivets are chosen for this kind of joint because they hold tight without loosening the way a screw thread can under vibration, but they only work as a one-shot fastener. Once one shears, it cannot be re-tightened the way a bolt could, which is why the fix is a fresh rivet rather than any kind of field repair on the old one.
Commercial uprights see this kind of wear faster than home machines simply from volume of use, pushed down stairs, steered around furniture, and run for hours at a stretch night after night. Replacing a sheared rivet promptly is a cheap way to stop that secondary wear before it reaches the parts that actually cost money to fix.
- Part: 048422, structural support rivet
- Function: secures body panels and internal brackets under load
- Fits: Hoover 1030, C1067, C1111, C1123, C1125, C1401, C1407
- Symptom it fixes: rattling or shifting panels that were solid when the machine was new
Confirm your exact model number before ordering, since the seven models above are this rivet's entire documented fitment.
