Riccar Frame Terminal Assem...
$39.99
Product details

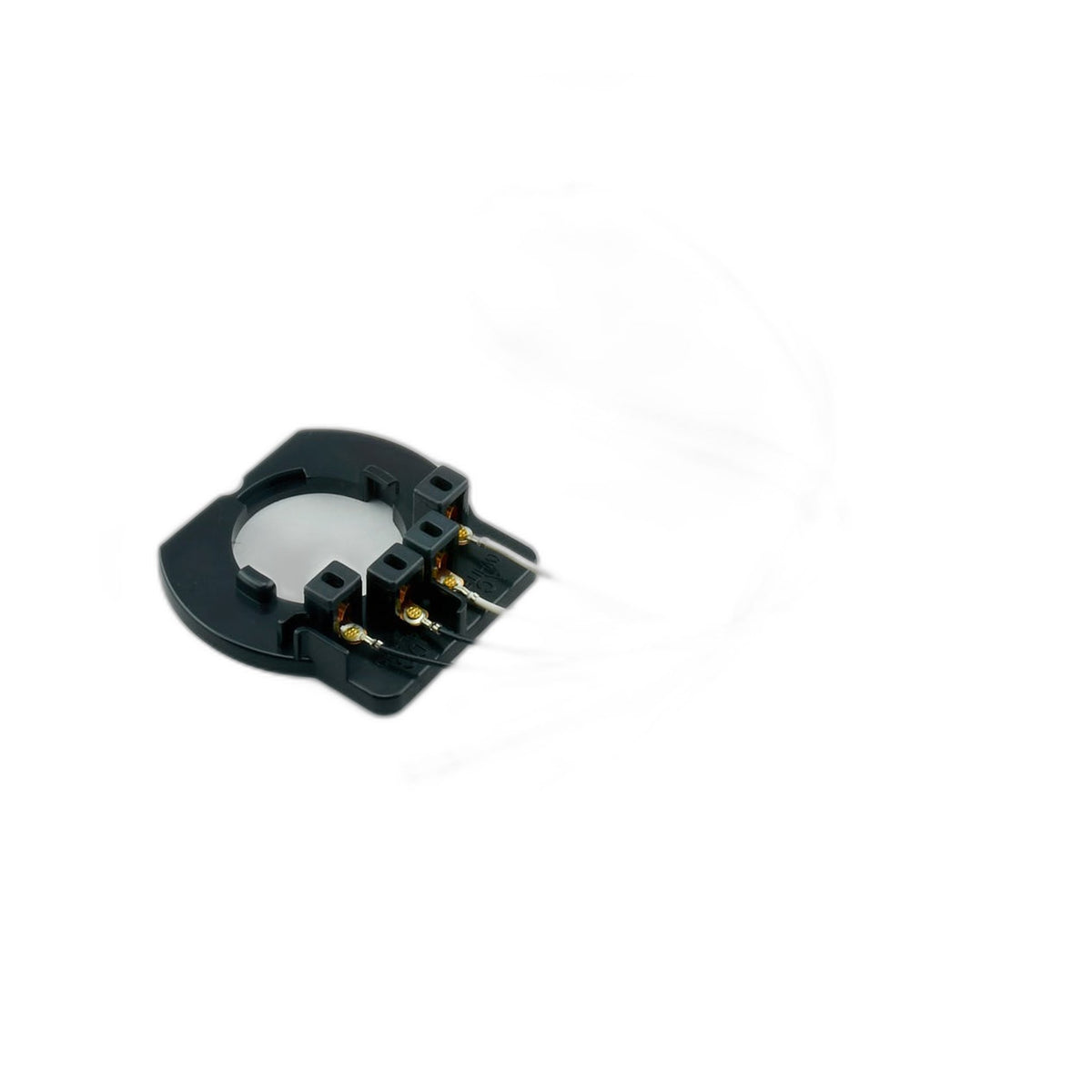

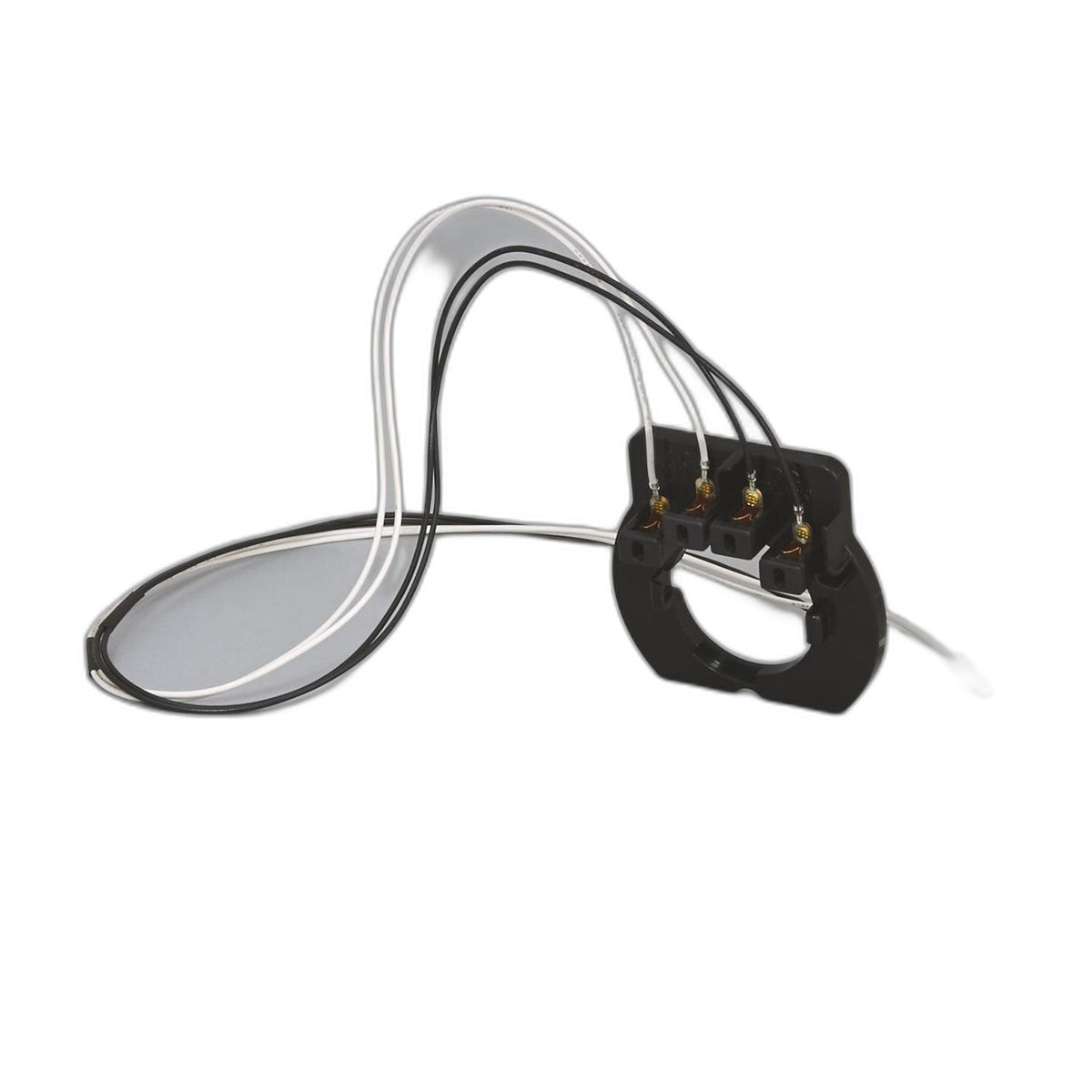

This frame terminal assembly is the electrical contact set built into the frame of a full-size canister vacuum, part D395-1000. Current for the motor passes through this terminal on its way from the plug end of the machine to the working end, so it functions as a connection point rather than a mechanical or cosmetic part.
Terminals of this kind fail through heat rather than mechanical wear. Every time current crosses a contact that is not seated perfectly tight, a small amount of resistance turns into heat at that exact spot. Over years of use, that heat pits and discolors the metal, which raises resistance further and creates more heat the next time the machine runs. Left unaddressed, this cycle can advance to the point where the connection blackens and the machine cuts out unpredictably, particularly when the cord or hose is moved and the terminal shifts slightly under the strain relief.
Because canister vacuums vary in how their frame terminals are laid out, and no model list is published against this particular assembly, match D395-1000 to the part on your machine by its shape, mounting points and wire gauge rather than by model name alone. If you are working on a machine that runs intermittently or cuts out only when handled, check this terminal before assuming the fault lies in the switch or the motor.
- Part: D395-1000
- Component: frame-mounted terminal contact set
- Fits: full-size canister vacuum frames
- Sold as: single unit
Always unplug the machine before opening the frame to inspect or replace this part, and check the mating terminal on the cord or hose end for the same pitting, since a damaged terminal on one side of a connection often means the other side has been running hot too.
