Bissell Foot Nozzle Window ...
$28.99
Product details

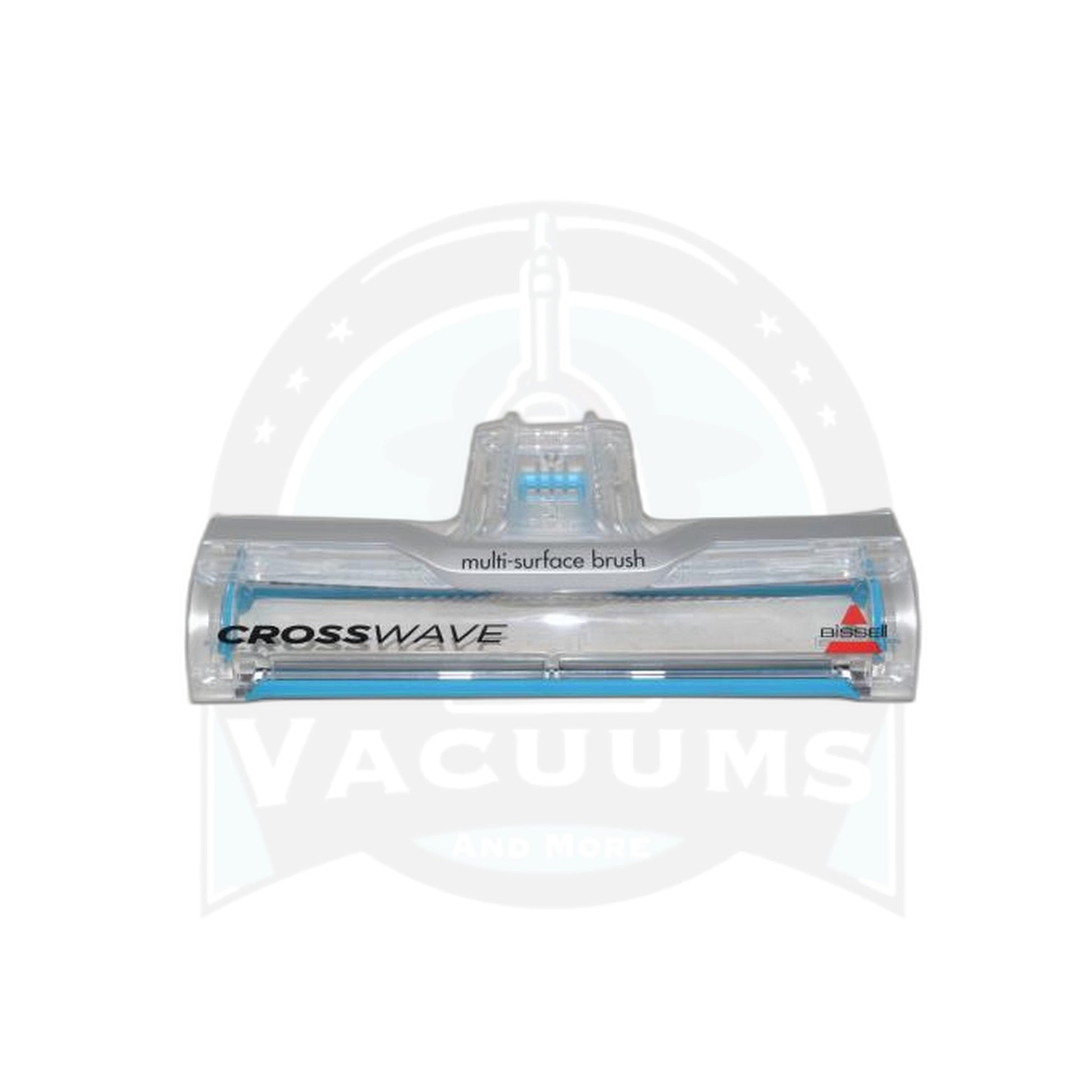

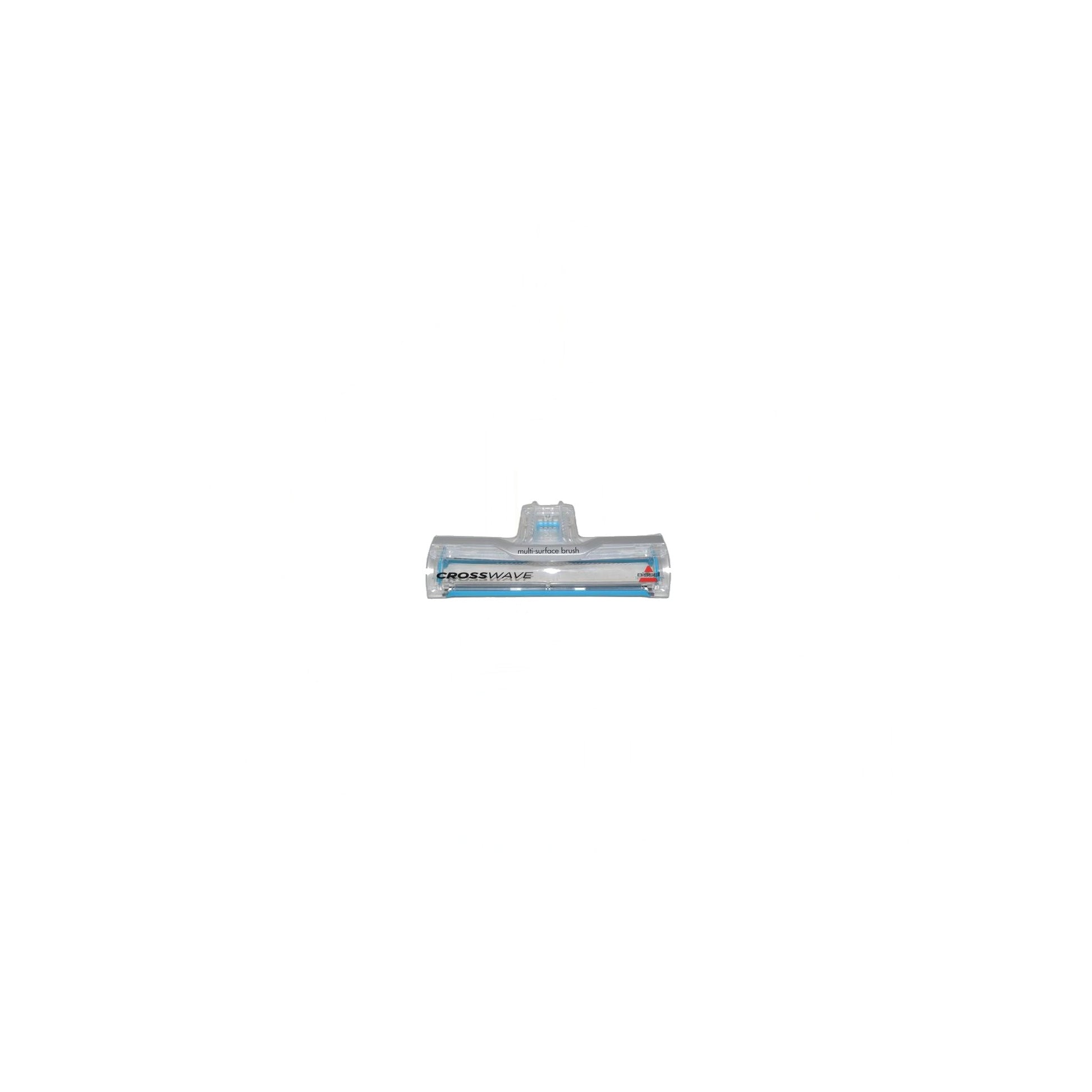

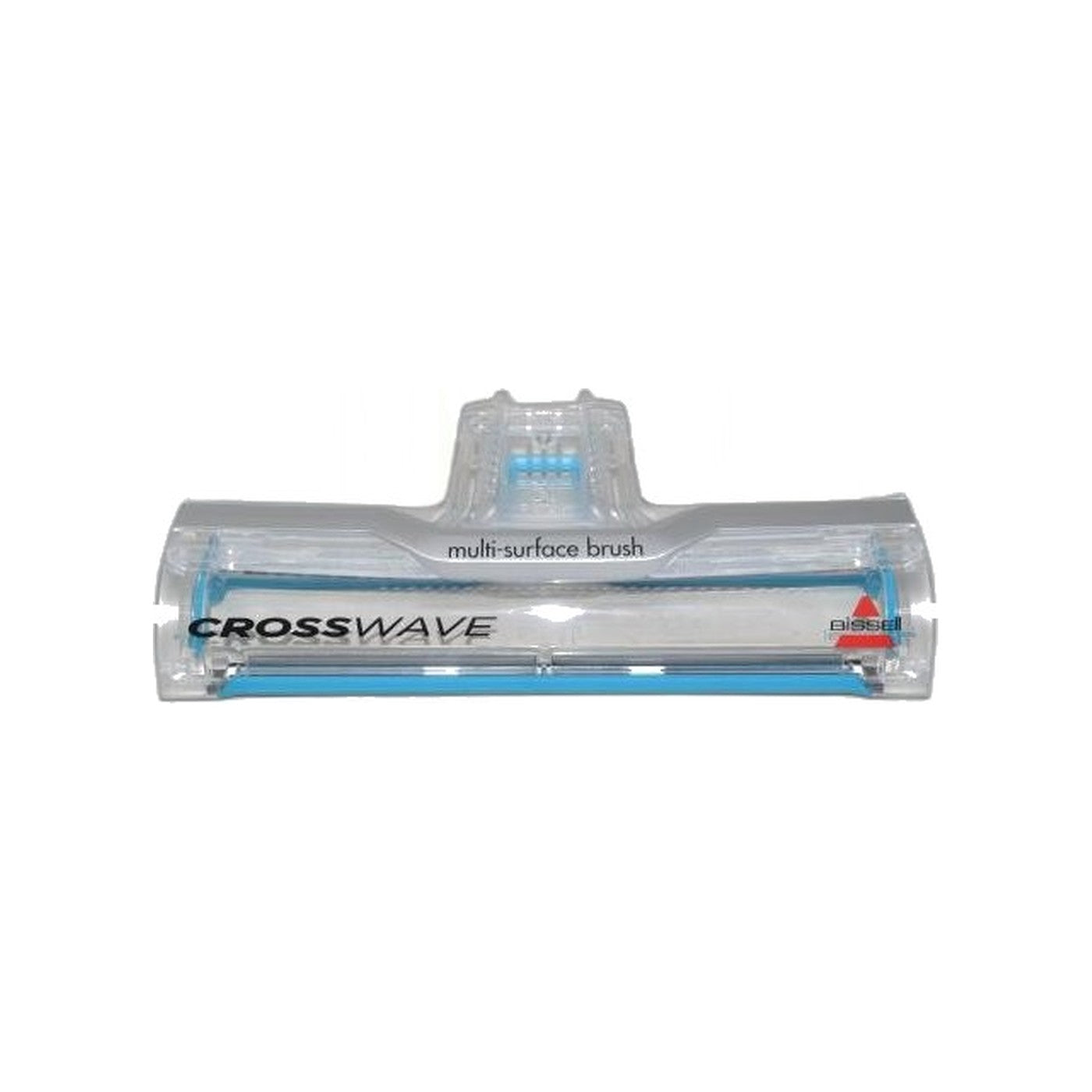

Part 1609656 is Bissell's replacement window for the CrossWave cleaning foot, finished in the Disco Teal color, covering the 1785, 1785A, 17853 and 17854, plus the bundled 32384, 32387 and 32389 kits. It is listed for the standard CrossWave rather than the CrossWave Max line, so confirm which of the two you own before ordering.
This clear panel does double duty, sitting in the cleaning foot as both a viewing port and part of the sealed path carrying dirty water off the floor. Watching through it while the machine runs is how you confirm water is actually being picked up rather than left behind. Once the panel cracks or the seal around its edge breaks down, that same spot starts leaking instead of holding a seal, and the foot begins depositing water on the floor rather than lifting it away.
Clouding from ground-in grit is reason enough to swap the part even without a crack, since a hazy panel makes it hard to judge whether pickup is actually happening during a pass. The replacement seats into the cleaning foot as a single assembly. A hairline crack is easy to miss on a dry machine, so look the panel over in good light with the foot tipped up rather than judging it by how the last pass went.
- Part: 1609656
- Color: Disco Teal
- Fits: Bissell CrossWave 1785, 1785A, 17853, 17854, 32384, 32387, 32389 (standard CrossWave only)
- Replace when: cracked, leaking, or clouded enough to obscure the water path
