Carpet Pro Thermal Reset - CPU1/CPU1T Upright
Carpet Pro Thermal Reset - CPU1/CPU1T Upright
SKU:B333-0400B
Low stock: 3 left
Couldn't load pickup availability
Shipping Information
Shipping Information
We offer free standard shipping on eligible orders of $100 or more within the 48 contiguous United States. Eligibility is calculated on the merchandise subtotal after discounts and before tax.
Most in-stock orders using standard shipping are processed within 1-5 business days, and most arrive 2-11 business days after they are placed. Backordered and special-order items may take longer. Expedited UPS Ground is available at checkout for an extra charge, including on orders that qualify for free standard shipping. See our Shipping Policy for details.
Returns & Exchanges
Returns & Exchanges
Need to return an item? We’re happy to help. Eligible items may be returned by requesting authorization within 35 days of delivery. Once approved, your return must reach us within 21 days.
Return eligibility
Items must be unused, in new condition, and include their original packaging and all accessories. Machines that use water cannot be returned once unboxed, unless defective upon arrival.
Shipping and refunds
For non-defective returns, customers cover return shipping. Original shipping charges are nonrefundable. If your order included free shipping, our actual outbound shipping cost will be deducted from your refund. Eligible returns have no restocking fee.
Received a defective item?
Contact us so we can help arrange a prepaid return label and replacement.
Please review our Return & Refund Policy for complete details and exclusions.
Warranty Information
Warranty Information
All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.
With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.
Fits the same machines
Carpet Pro Thermal Reset - ...
$13.99
Product details

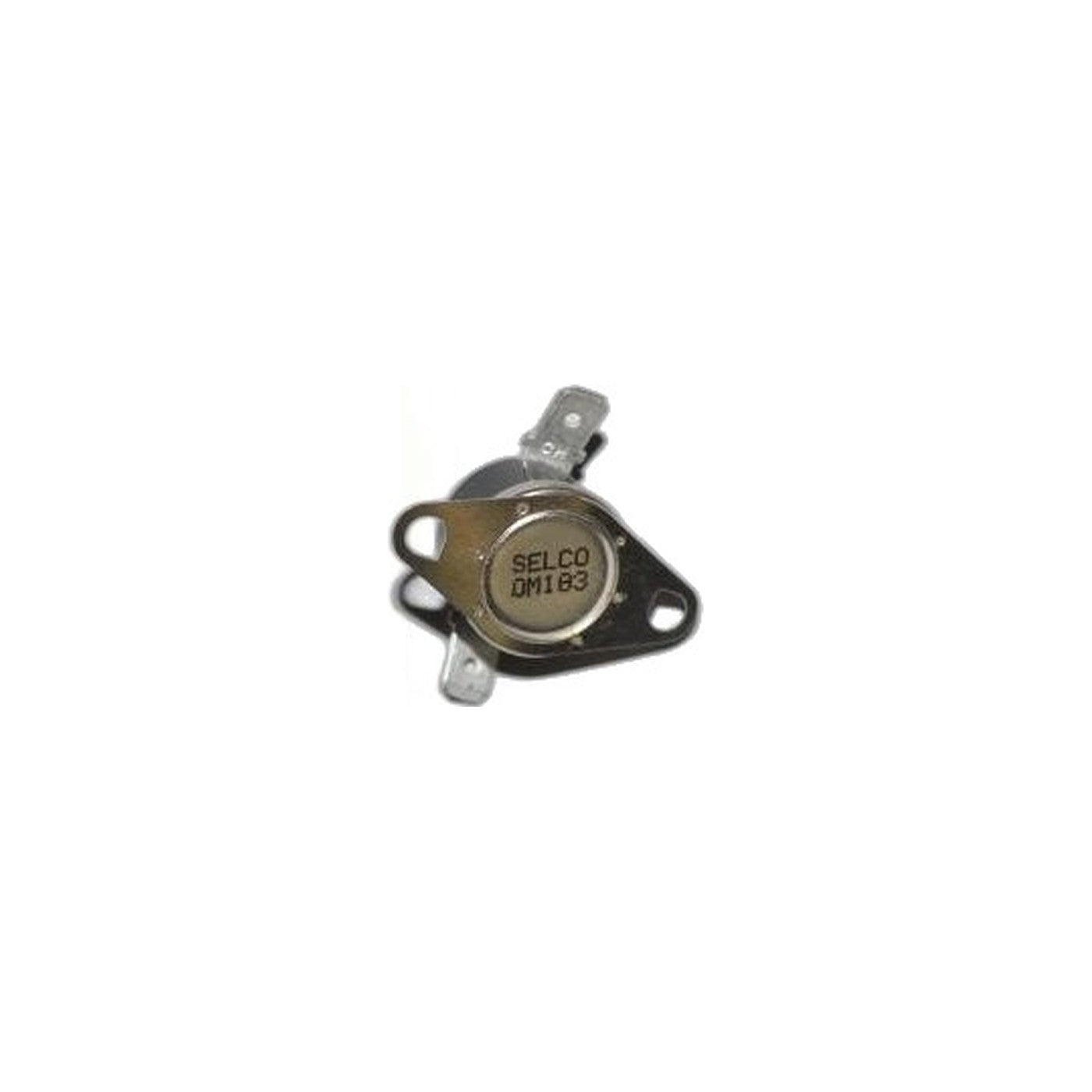

Part B333-0400B is the protective switch that shuts the motor down before heat buildup damages it, used across the Carpet Pro CPU1, CPU1T, CPU1QD, CPU2, CPU3N, CPU3QD, CPU4N, CPU4T and the CMP3 series.
Titan owners will find it listed for the TC6000, TC6000.2 and T4000.2, Powr-Flite carries it for its backpack line as the BP6S, BP6P, BP10S and BP10P, the Maytag M700 uses it too, and so does the Clean Max CMPSQD along with a run of Fuller Brush numbers: FBPHD2T, FBPHD2, FBP14PW, FBMMPWCF4, FBHD1T and FBHD1. This many nameplates share one reset switch because the machines underneath them are built on a common platform, badged differently for different sellers.
Wired into the motor circuit, the reset opens once it passes its set temperature and closes again as things cool back down. Working correctly, it produces a fairly recognizable pattern: the vacuum stops mid-task and comes back to life only after it has sat idle long enough to cool off. Actual overheating from a dirty filter, an overstuffed bag, or a brush roll jammed with debris can trigger that same pattern, so ruling those out first matters, because swapping a reset that is doing exactly what it should just puts off the actual repair.
Once airflow checks out clean and the trips keep happening anyway, the switch itself has grown too sensitive, cutting the circuit at a temperature the motor could otherwise handle without issue.
- Part: B333-0400B, thermal reset switch
- Fits: Titan T4000.2, TC6000, TC6000.2, Powr-Flite BP6S, BP6P, BP10S, BP10P, Maytag M700, Clean Max CMPSQD, Fuller Brush FBPHD2T, FBPHD2, FBP14PW, FBMMPWCF4, FBHD1T, FBHD1, Carpet Pro CPU1, CPU1T, CPU1QD, CPU2, CPU3N, CPU3QD, CPU4N, CPU4T, CMP3N, CMP3QD, CMP3T
- Function: cuts power to the motor if it overheats, and resets once it cools
- Replace when: the machine trips repeatedly with clear airflow and no clogs to explain the heat
- Rule out first: a clogged filter, full bag, or jammed brush roll, since a healthy reset trips correctly on those too
