Bissell
Bissell Case Drum & Hose - 3522-1 Upright
Bissell Case Drum & Hose - 3522-1 Upright
SKU:2031110
Out of stock
Couldn't load pickup availability
Shipping Information
Shipping Information
We offer free standard shipping on eligible orders of $100 or more within the 48 contiguous United States. Eligibility is calculated on the merchandise subtotal after discounts and before tax.
Most in-stock orders using standard shipping are processed within 1-5 business days, and most arrive 2-11 business days after they are placed. Backordered and special-order items may take longer. Expedited UPS Ground is available at checkout for an extra charge, including on orders that qualify for free standard shipping. See our Shipping Policy for details.
Returns & Exchanges
Returns & Exchanges
Need to return an item? We’re happy to help. Eligible items may be returned by requesting authorization within 35 days of delivery. Once approved, your return must reach us within 21 days.
Return eligibility
Items must be unused, in new condition, and include their original packaging and all accessories. Machines that use water cannot be returned once unboxed, unless defective upon arrival.
Shipping and refunds
For non-defective returns, customers cover return shipping. Original shipping charges are nonrefundable. If your order included free shipping, our actual outbound shipping cost will be deducted from your refund. Eligible returns have no restocking fee.
Received a defective item?
Contact us so we can help arrange a prepaid return label and replacement.
Please review our Return & Refund Policy for complete details and exclusions.
Warranty Information
Warranty Information
All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.
With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.
Fits the same machines
Bissell Case Drum & Hose - ...
$17.99
Product details

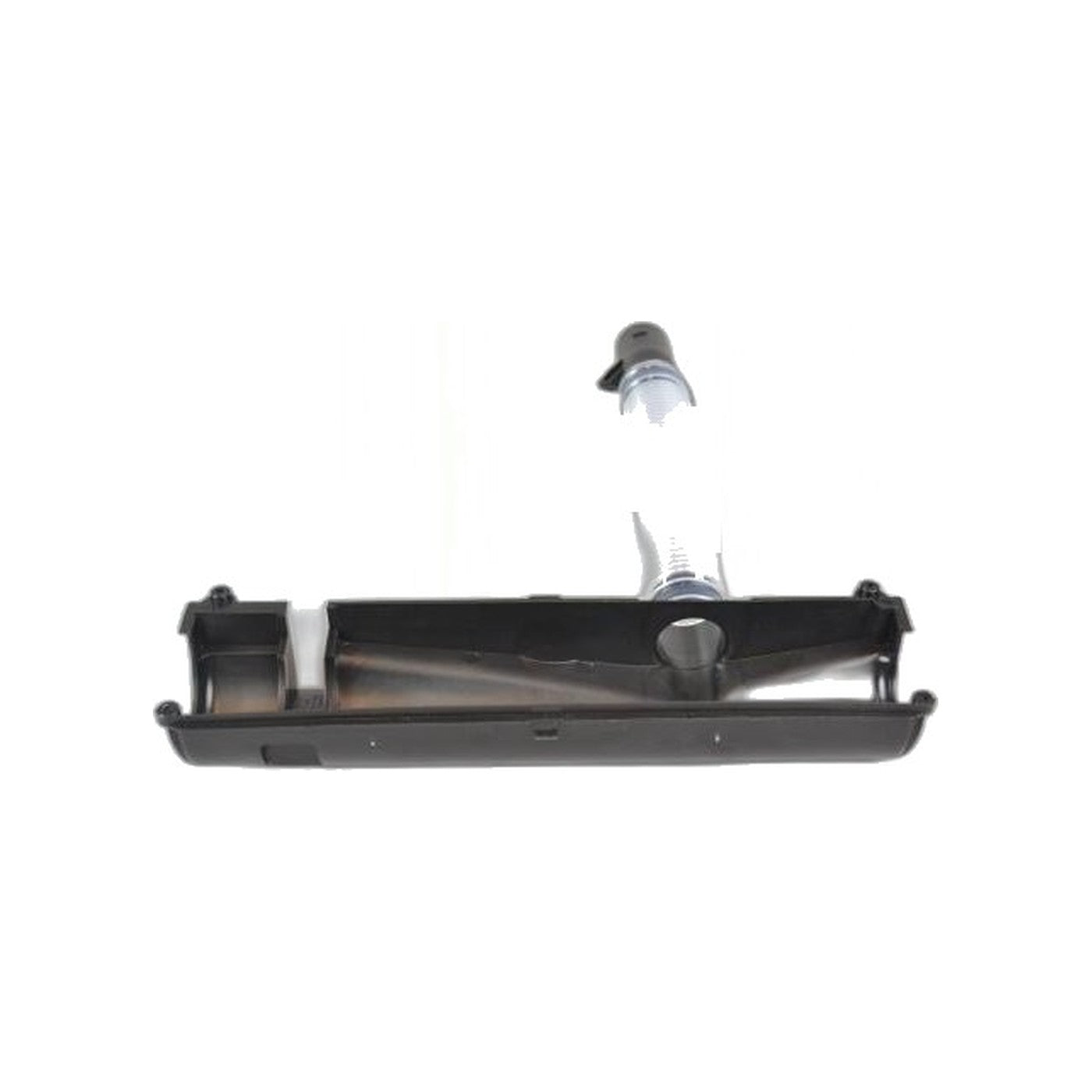

Bissell pairs the case drum and the hose as one part, 2031110, sold together for the 3522-1 upright because they form a single sealed air path: the drum is the molded shell mounted to the machine body, while the hose is the flexible run connecting it to the floor nozzle.
A leak anywhere along that path shows up as lost suction at the carpet rather than anywhere else, since that is the last stretch of ducting before the air reaches the bag. Hoses tend to split at the corrugated sections or right at the cuffs where they clamp on, and the drum itself cracks at the point where the hose pulls against it, often from being lifted or dragged by the hose instead of the handle. The giveaway is a machine that still sounds like it is running at full power but has stopped picking anything up off the floor.
Before ordering, run a hand down the length of the hose feeling for a soft spot or a split, and check the drum specifically where the hose attaches for a hairline crack. Either fault by itself is enough to account for a full loss of pickup without the rest of the assembly being at fault.
This assembly is shared across a wide group of Bissell uprights built on the same case, the 1739, 3522, 3530, 3537 and 46E5, the 6579-1 and 6579-3, the 6582, 6583 and 6584, the 71Y7, 71Y71, 71Y72 and 71Y73, the 9V03, and the BGU1451T.
- Part: 2031110, case drum and hose assembly
- Fits: Bissell 3522-1, 1739, 3522, 3530, 3537, 46E5, 6579-1, 6579-3, 6582, 6583, 6584, 71Y7, 71Y71, 71Y72, 71Y73, 9V03, BGU1451T
- Symptom: vacuum sounds normal but pickup at the floor has stopped
- Before ordering: check the hose for a soft or split section and the drum for hairline cracks
