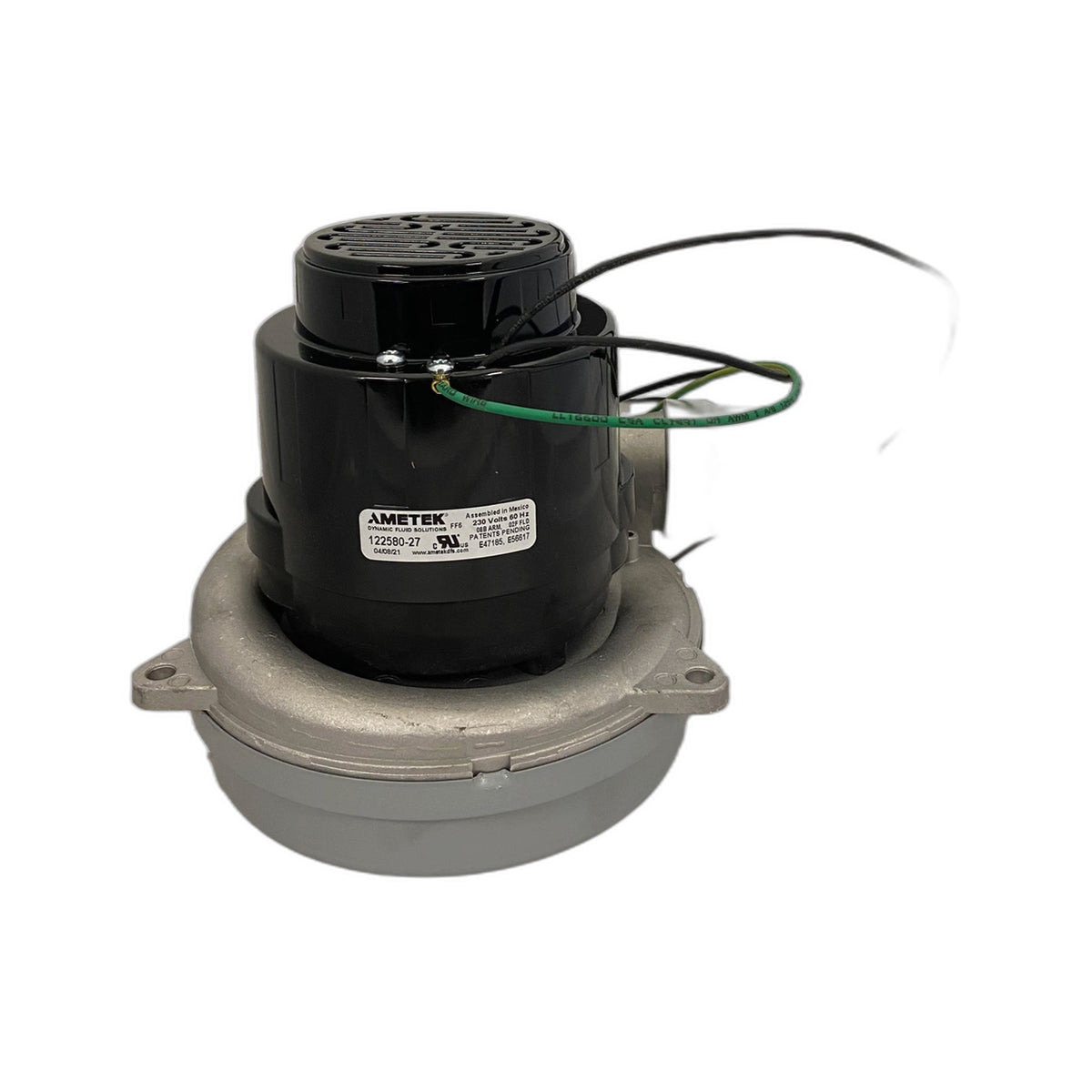

• Assembled AMETEK 122580-27 Motor with TCALUM300 Exhaust Tube
1 1

Trovac

Trovac Assembled AMETEK 122580-27 Motor with TCALUM300 Exhaust Tube

Trovac Assembled AMETEK 122580-27 Motor with TCALUM300 Exhaust Tube

$204.99 USD
$204.99 USD
Sale Sold out
Shipping calculated at checkout.

FM25802701
Authorized Trovac Dealer Factory warranty, extended free where we can
Free Shipping On Eligible Orders $100+
Expert Support 35+ Years Experience
35-Day Returns Eligible Items

Shipping Information

We offer free standard shipping on eligible orders of $100 or more within the 48 contiguous United States. Eligibility is calculated on the merchandise subtotal after discounts and before tax.

Most in-stock orders using standard shipping are processed within 1-5 business days, and most arrive 2-11 business days after they are placed. Backordered and special-order items may take longer. Expedited UPS Ground is available at checkout for an extra charge, including on orders that qualify for free standard shipping. See our Shipping Policy for details.

Returns & Exchanges

Need to return an item? We’re happy to help. Eligible items may be returned by requesting authorization within 35 days of delivery. Once approved, your return must reach us within 21 days.

Return eligibility

Items must be unused, in new condition, and include their original packaging and all accessories. Machines that use water cannot be returned once unboxed, unless defective upon arrival.

Shipping and refunds

For non-defective returns, customers cover return shipping. Original shipping charges are nonrefundable. If your order included free shipping, our actual outbound shipping cost will be deducted from your refund. Eligible returns have no restocking fee.

Received a defective item?

Contact us so we can help arrange a prepaid return label and replacement.

Please review our Return & Refund Policy for complete details and exclusions.

Warranty Information

All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.

With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.

View full details

Trovac Assembled AMETEK 122...

$204.99

Product details

The TCALUM300 aluminum exhaust tube is what sets part FM25802701 apart from Trovac's other assembled builds of the Ametek/Lamb 122580-27 motor, which ship with different tube lengths for housings that route the exhaust elsewhere.

Ametek/Lamb's own model record for the 122580-27 lists it as a 6.6 in frame, two-stage, tangential bypass motor on its 6.6 Premier Platform, rated in the High Performance class at 1,500 W on 230 V. The build note on this exact part number says it omits the thermal protection device found on some castings and adds power lead terminals and a curved carbon brush versus the base -00 version. Ametek groups the 122580-27 into its High Performance flow class rather than a standard-duty line, which is the manufacturer's own way of flagging that this motor is built for systems that ask more of it than an entry-level unit, and it is also why matching the exact part number matters more here than on a lower-output motor.

  • Motor: Ametek/Lamb 122580-27, tangential bypass, 2-stage
  • Rating: 230 V, 1,500 W, 6.6 in frame
  • Exhaust: TCALUM300 aluminum tube, fitted
  • Brush kit: 8505969-50 (replacement)

Check the TCALUM300 tube length and motor mount against your existing unit before ordering part FM25802701, and seat the exhaust gasket fully on installation so the joint does not become a new source of lost suction.

Verified against: Ametek/Lamb model data for 122580-27
