• Assembled 650 Airwatt Tangential Bypass Motor, 120V, 3-Stage
1 1

Trovac

Trovac Assembled Tangential Bypass Motor, 650 Airwatt, 120V 3-Stage

Trovac Assembled Tangential Bypass Motor, 650 Airwatt, 120V 3-Stage

$224.99 USD
$224.99 USD
Sale Sold out
Shipping calculated at checkout.

FMBP008204
Authorized Trovac Dealer Factory warranty, extended free where we can
Free Shipping On Eligible Orders $100+
Expert Support 35+ Years Experience
35-Day Returns Eligible Items

Shipping Information

We offer free standard shipping on eligible orders of $100 or more within the 48 contiguous United States. Eligibility is calculated on the merchandise subtotal after discounts and before tax.

Most in-stock orders using standard shipping are processed within 1-5 business days, and most arrive 2-11 business days after they are placed. Backordered and special-order items may take longer. Expedited UPS Ground is available at checkout for an extra charge, including on orders that qualify for free standard shipping. See our Shipping Policy for details.

Returns & Exchanges

Need to return an item? We’re happy to help. Eligible items may be returned by requesting authorization within 35 days of delivery. Once approved, your return must reach us within 21 days.

Return eligibility

Items must be unused, in new condition, and include their original packaging and all accessories. Machines that use water cannot be returned once unboxed, unless defective upon arrival.

Shipping and refunds

For non-defective returns, customers cover return shipping. Original shipping charges are nonrefundable. If your order included free shipping, our actual outbound shipping cost will be deducted from your refund. Eligible returns have no restocking fee.

Received a defective item?

Contact us so we can help arrange a prepaid return label and replacement.

Please review our Return & Refund Policy for complete details and exclusions.

Warranty Information

All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.

With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.

View full details

Trovac Assembled Tangential...

$224.99

Product details

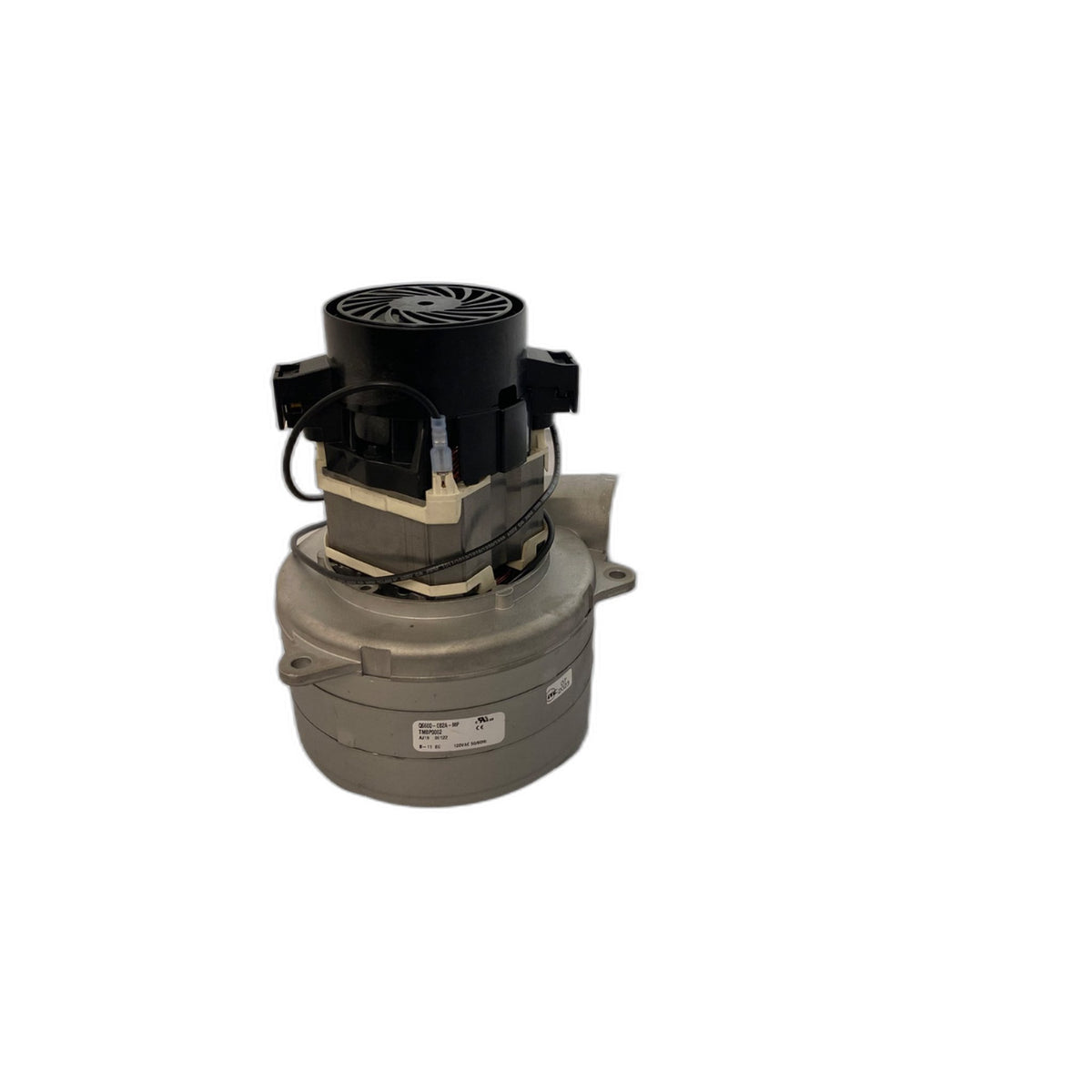

Part FMBP008204 is Trovac's assembled tangential bypass motor rated at 650 airwatts, the highest rating in this motor line, running a three-stage fan on 120 V.

Adding a third fan stage is how a motor reaches this rating without changing its footprint, stacking more lift out of the same frame size. The tangential bypass design keeps a separate cooling-air path for the motor so the suction stream stays free to do its job. Larger central vacuum systems, or ones with several inlets and long pipe runs, are typically where a 650-airwatt motor earns its keep over a two-stage unit. A motor working this hard is worth listening to over time: a new rattle, a rising pitch, or a thermal cutout that trips more than it used to are the usual signs of bearing or brush wear well before suction visibly drops.

  • Type: Tangential bypass, 3-stage
  • Rating: 120 V, 650 airwatts
  • Build: Assembled, ready to install

Motor mounts and exhaust routing are not standardized across central vacuum power units, so match part FMBP008204 to your original motor or your unit's parts diagram before ordering, and check the exhaust gasket seats fully on installation.
