• Assembled 605 Airwatt Tangential Bypass Motor, 120V, 2-Stage
1 1

Trovac

Trovac Assembled Tangential Bypass Motor, 605 Airwatt, 120V 2-Stage

Trovac Assembled Tangential Bypass Motor, 605 Airwatt, 120V 2-Stage

$191.99 USD
$191.99 USD
Sale Sold out
Shipping calculated at checkout.

FMCY052104
Authorized Trovac Dealer Factory warranty, extended free where we can
Free Shipping On Eligible Orders $100+
Secure Checkout SSL Encrypted

Shipping Information

We offer free standard shipping on eligible orders of $100 or more within the 48 contiguous United States. Eligibility is calculated on the merchandise subtotal after discounts and before tax.

Most in-stock orders using standard shipping are processed within 1-5 business days, and most arrive 2-11 business days after they are placed. Backordered and special-order items may take longer. Expedited UPS Ground is available at checkout for an extra charge, including on orders that qualify for free standard shipping. See our Shipping Policy for details.

Returns & Exchanges

Need to return an item? We’re happy to help. Eligible items may be returned by requesting authorization within 35 days of delivery. Once approved, your return must reach us within 21 days.

Return eligibility

Items must be unused, in new condition, and include their original packaging and all accessories. Machines that use water cannot be returned once unboxed, unless defective upon arrival.

Shipping and refunds

For non-defective returns, customers cover return shipping. Original shipping charges are nonrefundable. If your order included free shipping, our actual outbound shipping cost will be deducted from your refund. Eligible returns have no restocking fee.

Received a defective item?

Contact us so we can help arrange a prepaid return label and replacement.

Please review our Return & Refund Policy for complete details and exclusions.

Warranty Information

All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.

With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.

View full details

Trovac Assembled Tangential...

$191.99

Product details

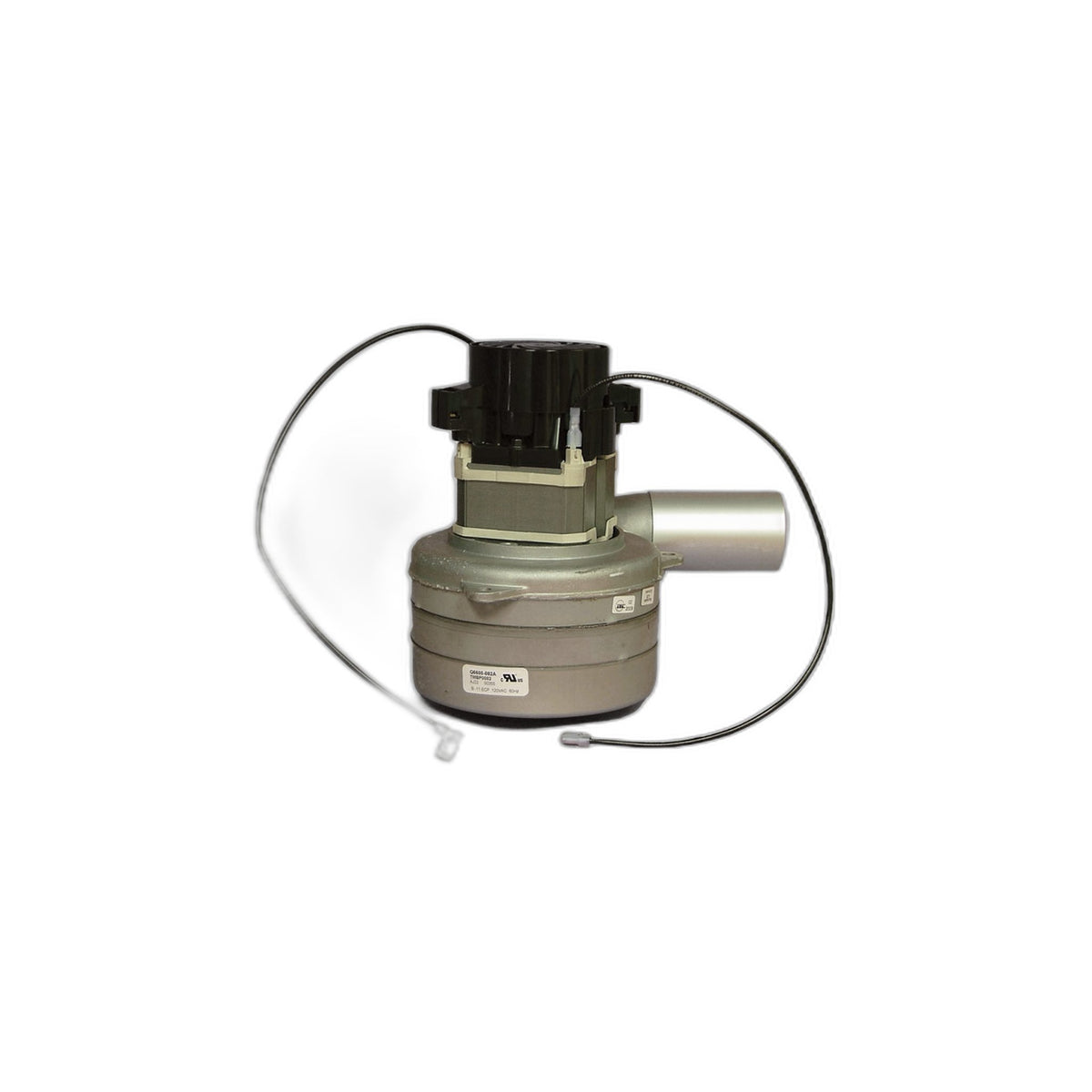

Part FMCY052104 is Trovac's assembled tangential bypass motor rated at 605 airwatts on 120 V, built as a two-stage unit for central vacuum power units that need more lift than an entry-level motor provides.

Tangential bypass motors bring cooling air in on a path that enters the fan housing at an angle, separate from the suction stream, so the airflow that pulls dust through the piping never has to double as motor cooling. That separation is part of what lets a motor run for years between services when the seals and bearings stay intact. Watch for the early signs of a tired motor rather than waiting for it to quit outright: a rising pitch, a new rattle, or a thermal cutout that trips more often than it used to are the usual warnings that bearings or brushes are wearing out.

  • Type: Tangential bypass, 2-stage
  • Rating: 120 V, 605 airwatts
  • Build: Assembled, ready to install

Because motor mounts, frame diameters, and exhaust routing vary between central vacuum units, check part FMCY052104 against your original motor or your unit's parts diagram before ordering, and seat the exhaust gasket fully so the joint does not become a new leak.
