• AMETEK Lamb 116336-01 Peripheral Bypass Motor 120V 2-Stage 275AW
1 1

Trovac

AMETEK Lamb 116336-01 Peripheral Bypass Motor 120V 2-Stage 275AW

AMETEK Lamb 116336-01 Peripheral Bypass Motor 120V 2-Stage 275AW

$145.99 USD
$145.99 USD
Sale Sold out
Shipping calculated at checkout.

TM633601
Authorized Trovac Dealer Factory warranty, extended free where we can
Free Shipping On Eligible Orders $100+
Secure Checkout SSL Encrypted

Shipping Information

We offer free standard shipping on eligible orders of $100 or more within the 48 contiguous United States. Eligibility is calculated on the merchandise subtotal after discounts and before tax.

Most in-stock orders using standard shipping are processed within 1-5 business days, and most arrive 2-11 business days after they are placed. Backordered and special-order items may take longer. Expedited UPS Ground is available at checkout for an extra charge, including on orders that qualify for free standard shipping. See our Shipping Policy for details.

Returns & Exchanges

Need to return an item? We’re happy to help. Eligible items may be returned by requesting authorization within 35 days of delivery. Once approved, your return must reach us within 21 days.

Return eligibility

Items must be unused, in new condition, and include their original packaging and all accessories. Machines that use water cannot be returned once unboxed, unless defective upon arrival.

Shipping and refunds

For non-defective returns, customers cover return shipping. Original shipping charges are nonrefundable. If your order included free shipping, our actual outbound shipping cost will be deducted from your refund. Eligible returns have no restocking fee.

Received a defective item?

Contact us so we can help arrange a prepaid return label and replacement.

Please review our Return & Refund Policy for complete details and exclusions.

Warranty Information

All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.

With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.

View full details

AMETEK Lamb 116336-01 Perip...

$145.99

Product details

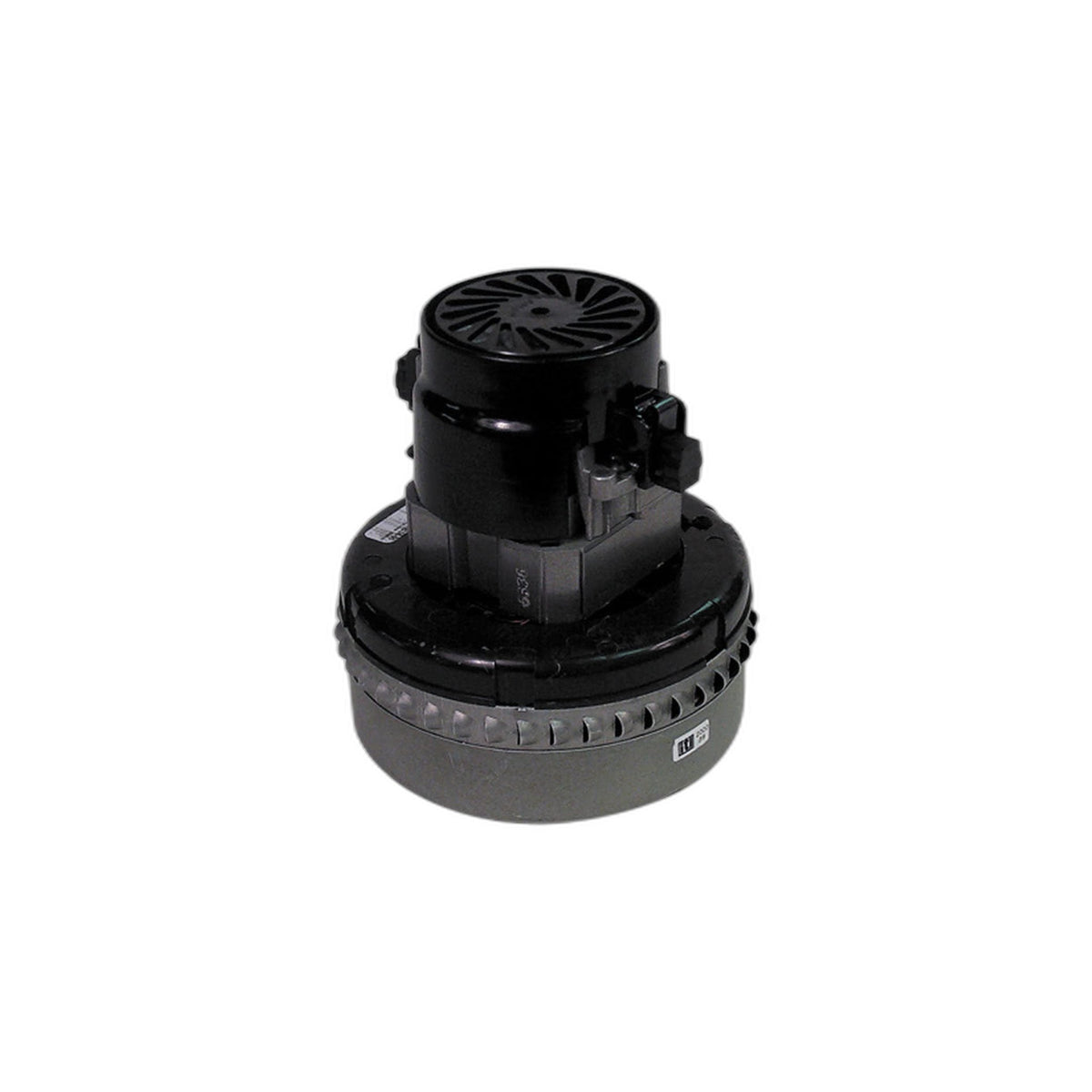

The AMETEK Lamb 116336-01 is a peripheral bypass central vacuum motor, sold here as replacement part TM633601. It runs on 120V with a 2-stage fan in a 5.7 in. diameter frame, rated at roughly 274 air watts, 94 CFM, and 84.3 in. of sealed suction (water lift), and it draws about 8 amps at 50-60 Hz.

Bypass motors keep the air that cools the motor windings on a path separate from the dirty air pulled in from the house, the layout most whole-home central vacuum power units use. This particular motor is listed as compatible with power units from a range of central vacuum nameplates, including Beam, Nutone, Vacuflo, Vacumaid, and Star, so it is worth checking by part number even if your unit carries a different brand badge.

  • Part: TM633601 (AMETEK Lamb 116336-01)
  • Design: peripheral bypass, 2-stage, 120V
  • Output: about 274 air watts, 94 CFM, 84.3 in. water lift
  • Frame: 5.7 in. diameter, 6-1/4 in. motor height
  • Service brush kit: part 833326-58

It also supersedes several earlier Lamb motor numbers, including 116757, 116212, 115477, 115757, 115407, 116758, and 115737, so it is a valid replacement if your old motor carries one of those numbers. Before ordering, measure your existing motor's frame diameter across its base and check the tag for a Lamb part number, since frame sizes are not interchangeable across the Lamb bypass lineup. Replace it when the motor is worn, noisy, or has lost suction.

Verified against: the Lamb 116336-01 model record
